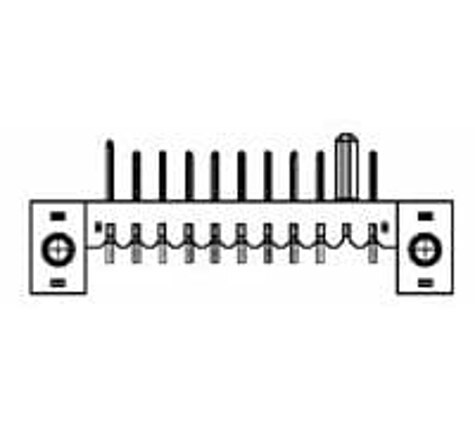

6123738-7
ActiveTE Connectivity AMP Connectors
POWER TO THE BOARD PLG ASY 10POS. 2.5MM PITCH BATTERY CON
6123738-7
ActiveTE Connectivity AMP Connectors
POWER TO THE BOARD PLG ASY 10POS. 2.5MM PITCH BATTERY CON
Description
General part information
6123738-7
Board-to-Board, 10 Position, 2.5 mm [.098 in] Centerline, Plug, 30 VDC, Right Angle, Printed Circuit Board, Power & Signal, DC Jack Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 6123738-7 |
|---|---|
| Color | Black |
| Connector Style | Battery |
| Connector Type | Plug, Male Blades |
| Features | Board Guide, Solder Retention |
| Mounting Type | Board Edge, Surface Mount, Right Angle |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Pitch | 0.098 in |
| Termination | Solder |
