1-485893-0
ActiveTE Connectivity AMP Connectors
CONN FFC PIN HSG 12POS 2.54MM
1-485893-0
ActiveTE Connectivity AMP Connectors
CONN FFC PIN HSG 12POS 2.54MM
Description
General part information
1-485893-0

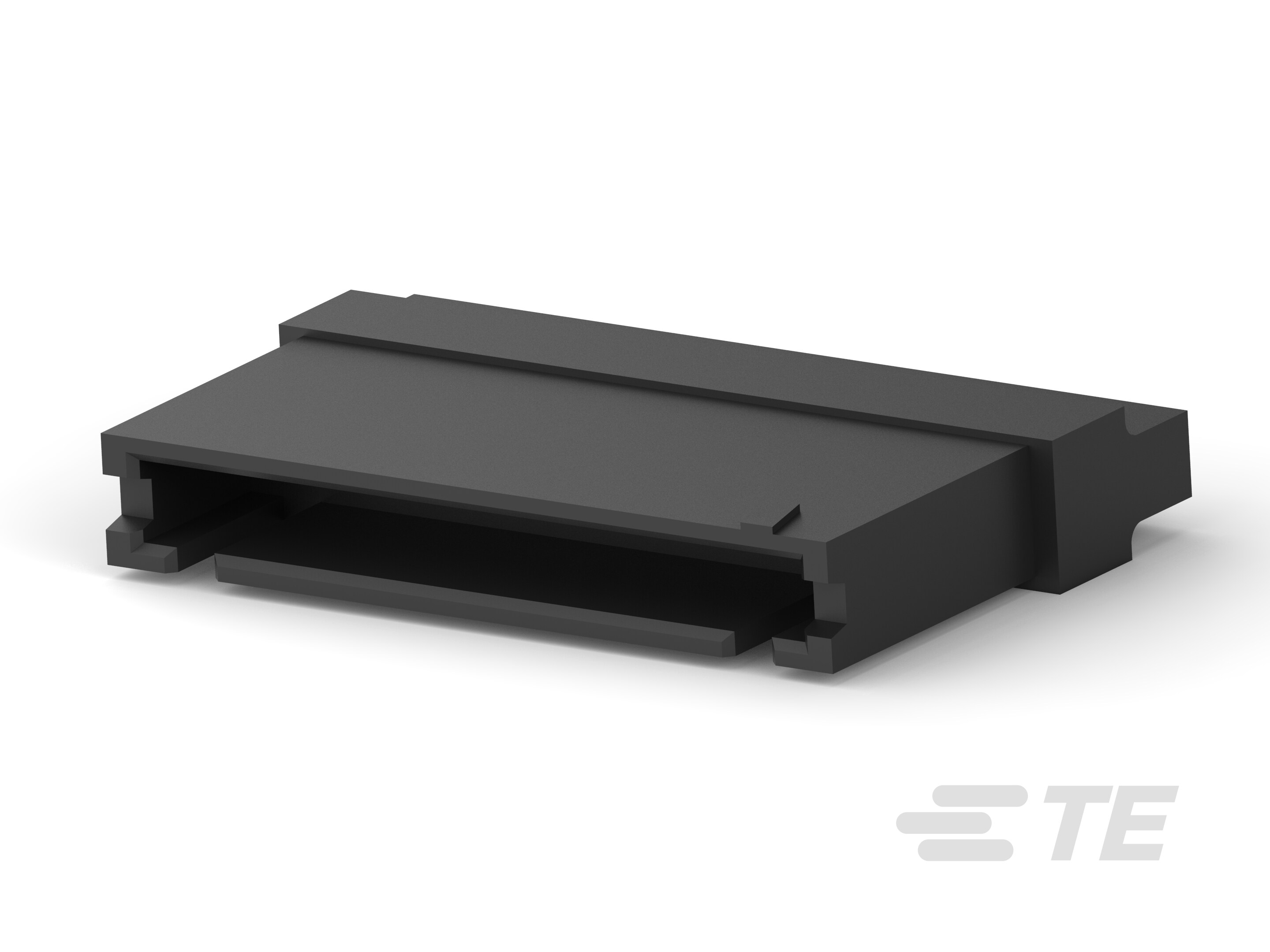

Housing, Wire-to-Board, 12 Position, 2.54 mm [.1 in] Centerline, 1 Row, Pin, Package, Normal, Straight, Black, FFC Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-485893-0 |
|---|---|
| Connector Type | Housing for Male Contacts |
| FFC, FCB Thickness (Max) | 0.13 mm |
| FFC, FCB Thickness (Min) | 0.05 mm |
| Flat Flex Type | FFC, Discrete Wire |
| Housing Material | Thermoplastic |
| Locking Feature | Detent Lock |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -65 °C |
| Pitch | 0.1 in |
| Voltage Rating | 300 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
Extraction Tools PN 91047-[ ]
Extraction Tool for Flexible Flat Cable (FFC)
ENG_CD_485893_V2.pdf
AMP 2.0MM PITCH HPI WIRE-TO-BOARD SYSTEM.
Datasheet
Connector, Flexible Flat Conductor Cable, .100 Inch Centerline
FPC special-use connectors
Flexible Flat Cable (FFC) Housings with Contact Cavities on 2.54-mm (.100-in.] Centerline Spacing
1-485893-0 | Datasheet
