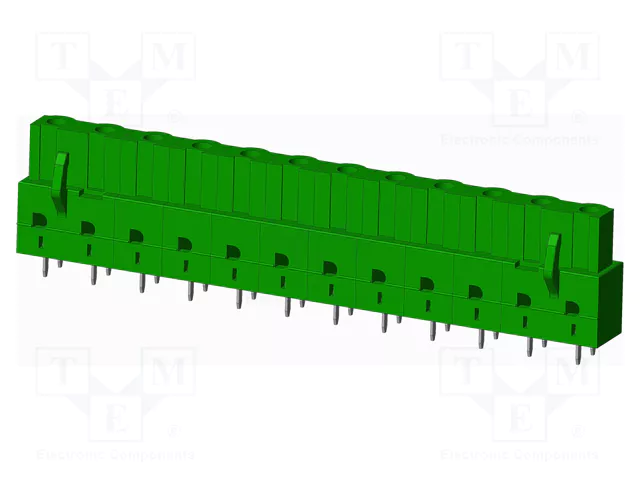

Specification	V712A1500000G

Color	Green
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Contact Tail Length	0.138 in
Current - UL	10 A
Features	Retention Latches
Header Orientation	Vertical
Housing Material	Thermoplastic
Insulation Height	0.748 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	12
Operating Temperature (Max)	115 °C
Operating Temperature (Min)	-40 °C
Pitch	0.295 in
Positions Per Level	12
Termination Style	Solder
Type	Header, Female Sockets
Voltage - UL	300 V

V712 Series

Part	Contact Mating Finish	Header Orientation Angle	Header Orientation	Mounting Type	Pitch	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Positions Per Level	Voltage - UL	Current - UL	Type	Number of Levels	Termination Style	Color	Contact Material	Insulation Height	Contact Tail Length	Material Flammability Rating	Housing Material	Features
McGill Microwave Systems V71211510000G	Tin	90 °	Right Angle	Through Hole	0.138 in	12	-40 °C	115 °C	12	300 V	4 A	Female Sockets Header	1	Solder	Green	Phosphor Bronze	0.26 in	0.134 in	UL94 V-0	Thermoplastic
McGill Microwave Systems V71232510000G	Tin	90 °	Right Angle	Through Hole	0.15 in	12	-40 °C	115 °C	12	300 V	8 A	Female Sockets Header	1	Solder	Green	Phosphor Bronze	0.268 in	0.134 in	UL94 V-0	Thermoplastic	Mating Flange
McGill Microwave Systems V71201510000G	Tin	90 °	Right Angle	Through Hole	0.3 in	12	-40 °C	115 °C	12	300 V	20 A	Female Sockets Header	1	Solder	Green	Copper		0.138 in	UL94 V-0	Thermoplastic	Retention Latches
McGill Microwave Systems V71252500000G	Tin		Vertical	Through Hole	5.08 mm	12	-40 °C	115 °C	12	300 V	20 A	Female Sockets Header	1	Solder	Green	Copper	0.748 in	0.138 in	UL94 V-0	Thermoplastic	Mating Flange Retention Latches
McGill Microwave Systems V71202500000G	Tin		Vertical	Through Hole	0.3 in	12	-40 °C	115 °C	12	300 V	20 A	Female Sockets Header	1	Solder	Green	Copper	0.748 in	0.138 in	UL94 V-0	Thermoplastic	Mating Flange Retention Latches
McGill Microwave Systems V71201500000G	Tin		Vertical	Through Hole	0.3 in	12	-40 °C	115 °C	12	300 V	20 A	Female Sockets Header	1	Solder	Green	Copper	0.748 in	0.138 in	UL94 V-0	Thermoplastic	Retention Latches
McGill Microwave Systems V71202510000G	Tin	90 °	Right Angle	Through Hole	0.3 in	12	-40 °C	115 °C	12	300 V	20 A	Female Sockets Header	1	Solder	Green	Copper		0.138 in	UL94 V-0	Thermoplastic	Mating Flange Retention Latches
McGill Microwave Systems V71252510000G	Tin	90 °	Right Angle	Through Hole	5.08 mm	12	-40 °C	115 °C	12	300 V	20 A	Female Sockets Header	1	Solder	Green	Copper		0.138 in	UL94 V-0	Thermoplastic	Mating Flange Retention Latches
McGill Microwave Systems V71232500000G	Tin		Vertical	Through Hole	0.15 in	12	-40 °C	115 °C	12	300 V	8 A	Female Sockets Header	1	Solder	Green	Phosphor Bronze	0.571 in	0.134 in	UL94 V-0	Thermoplastic	Mating Flange

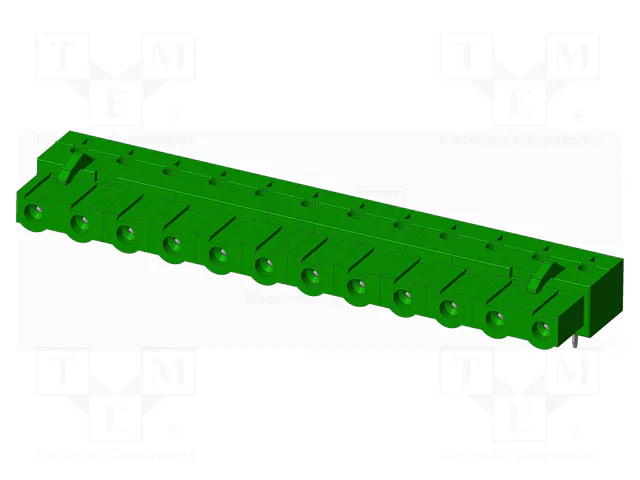

McGill Microwave Systems V712A1510000G	Tin	90 °	Right Angle	Through Hole	0.295 in	12	-40 °C	115 °C	12	300 V	10 A	Female Sockets Header	1	Solder	Green	Phosphor Bronze		0.138 in	UL94 V-0	Thermoplastic	Retention Latches
