9001K2L35LRRH13
ActiveSCHNEIDER ELECTRIC

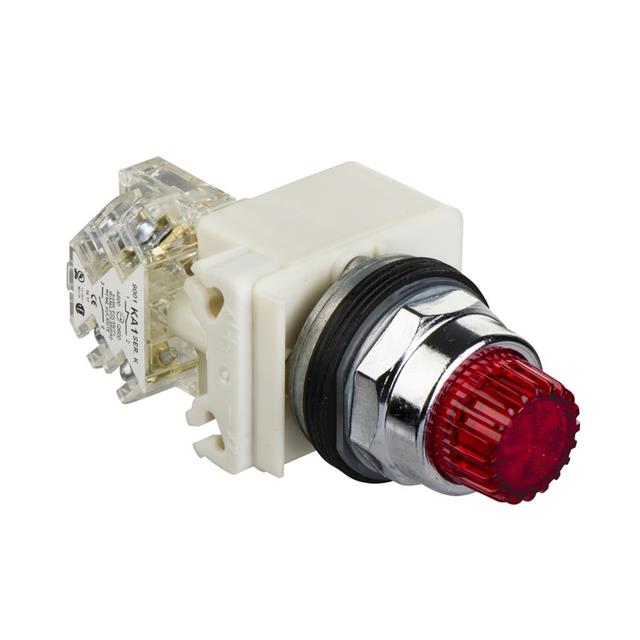

INDUSTRIAL PUSHBUTTON SWITCH, HARMONY 9001K SERIES, 30 MM, SPDT, MOMENTARY, ROUND RAISED, RED
9001K2L35LRRH13
ActiveSCHNEIDER ELECTRIC
INDUSTRIAL PUSHBUTTON SWITCH, HARMONY 9001K SERIES, 30 MM, SPDT, MOMENTARY, ROUND RAISED, RED
Description
General part information
9001K2L35LRRH13
Configurable Switch Body Pushbutton, Round Illuminated - Red
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001K2L35LRRH13 |
|---|---|
| Actuator Type | Pushbutton, Round, Button |
| Color | Red |
| Compatible Series | Harmony 9001K, Schneider |
| Current Rating | 10 A |
| Illumination | Red |
| Illumination Type | LED |
| Ingress Protection Description | Dust Tight, Oil and Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Panel Cutout Diameter | 30 mm |
| Panel Cutout Dimension | 30 mm |
| Panel Cutout Shape | Round, Circular |
| Requires | Illumination Source, Contact Block(s) |
| Type | Momentary, Standard, Illuminated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
