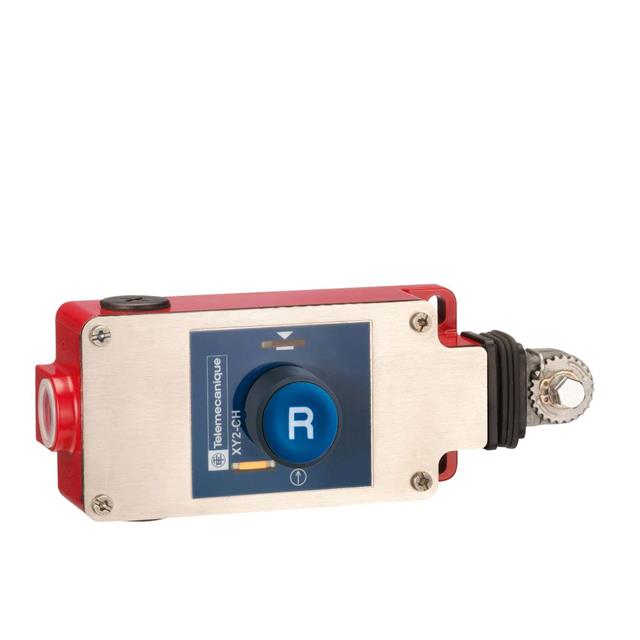

XY2CH13190H7
ActiveSCHNEIDER ELECTRIC
GRABWIRE SWITCH, STANDARD PUSHBUTTON, 30 M, DPST-NC, SPST-NO, 240 V, 1.5 A, 250 V, 100 MA
XY2CH13190H7
ActiveSCHNEIDER ELECTRIC
GRABWIRE SWITCH, STANDARD PUSHBUTTON, 30 M, DPST-NC, SPST-NO, 240 V, 1.5 A, 250 V, 100 MA
Description
General part information
XY2CH13190H7
GRABWIRE SWITCH, STANDARD PUSHBUTTON, 30 M, DPST-NC, SPST-NO, 240 V, 1.5 A, 250 V, 100 MA
Technical Specifications
Parameters and characteristics for this part
| Specification | XY2CH13190H7 |
|---|---|
| Circuit | 3PST-2NC/1NO |
| Current Rating | 100 mA, 1.5 A |
| Features | Push Button Emergency Stop Switch |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Maximum Cable Length | 30 m |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Off, Off-On |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 250 VDC |
| Weight | 1.9 lbs |
