Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0826527:7 | 0826527 Series |
|---|---|---|
| Cable Diameter | - | 16 mm |
| Cable Diameter | - | 0.63 in |
| Color | - | Yellow |
| Legend | 7 | 1, 3, 7, 2, 9, 8 |
| Legend | - | 5 - 6 |
| Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Size [y] | 4.3 mm | 4.3 mm |
| Size [y] | 0.17 in | 0.17 in |
| Type | Wire Marker, Slip-On | Wire Marker, Slip-On |
0826527 Series

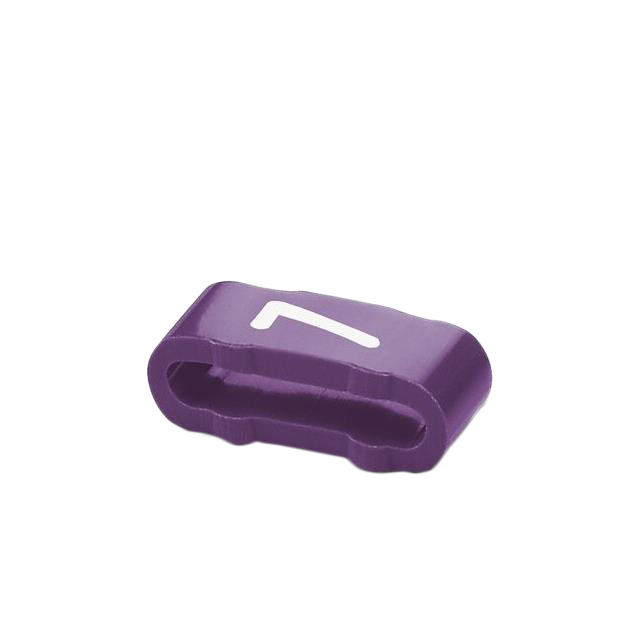

WIRE MARKER SLIP-ON 4.3MM
| Part | Material | Operating Temperature [Min] | Operating Temperature [Max] | Type | Legend | Size [y] | Size [y] | Legend | Cable Diameter [diameter] | Cable Diameter [diameter] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 0826527:1 | Poly-Vinyl Chloride (PVC) | -30 ░C | 60 °C | Wire Marker, Slip-On | 1 | 4.3 mm | 0.17 in | ||||
Phoenix Contact 0826527:3 | Poly-Vinyl Chloride (PVC) | -30 ░C | 60 °C | Wire Marker, Slip-On | 3 | 4.3 mm | 0.17 in | ||||
Phoenix Contact 0826527:7 | Poly-Vinyl Chloride (PVC) | -30 ░C | 60 °C | Wire Marker, Slip-On | 7 | 4.3 mm | 0.17 in | ||||
Phoenix Contact 0826527:5 | Poly-Vinyl Chloride (PVC) | -30 ░C | 60 °C | Wire Marker, Slip-On | 4.3 mm | 0.17 in | 5 | ||||
Phoenix Contact 0826527:2 | Poly-Vinyl Chloride (PVC) | -30 ░C | 60 °C | Wire Marker, Slip-On | 2 | 4.3 mm | 0.17 in | ||||
Phoenix Contact 0826527:9 | Poly-Vinyl Chloride (PVC) | -30 ░C | 60 °C | Wire Marker, Slip-On | 9 | 16 mm | 0.63 in | Yellow | |||
Phoenix Contact 0826527:8 | Poly-Vinyl Chloride (PVC) | -30 ░C | 60 °C | Wire Marker, Slip-On | 8 | 4.3 mm | 0.17 in | ||||
Phoenix Contact 0826527:6 | Poly-Vinyl Chloride (PVC) | -30 ░C | 60 °C | Wire Marker, Slip-On | 4.3 mm | 0.17 in | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
0826527 Series
Wire Marker, Slip-On 0.17" W (4.3mm) Poly-Vinyl Chloride (PVC)
