FERRITE CORE TOROID 105NH MPP
C055350A2
ActiveMagnetics, a division of Spang & Co.
FERRITE CORE TOROID 105NH MPP
Description
General part information
C055350A2

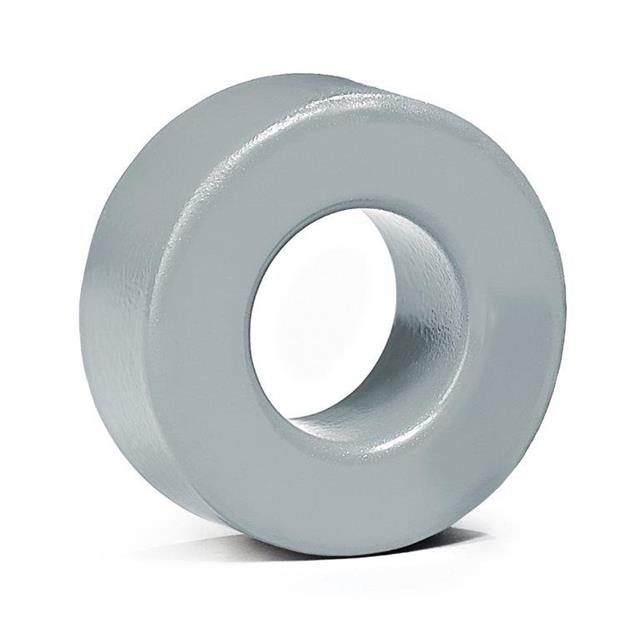

Coated MPP Ferrite Core Toroid Type Length Width 0.958" (24.33mm) Diameter 0.380" (9.65mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | C055350A2 |
|---|---|
| Core Type | Toroid |
| Diameter | 0.958 in |
| Effective Area (Ae) | 38.8 mm² |
| Effective Length (le) | 58.8 mm |
| Effective Magnetic Volume (Ve) | 2280 mm³ |
| Finish | Coated |
| Gap | Ungapped |
| Height | 0.38 in |
| Inductance Factor (Al) | 105 nH |
| Initial Permeability (µi) | 125 |
| Material | MPP |
| Tolerance | 8 % |
