Description
General part information

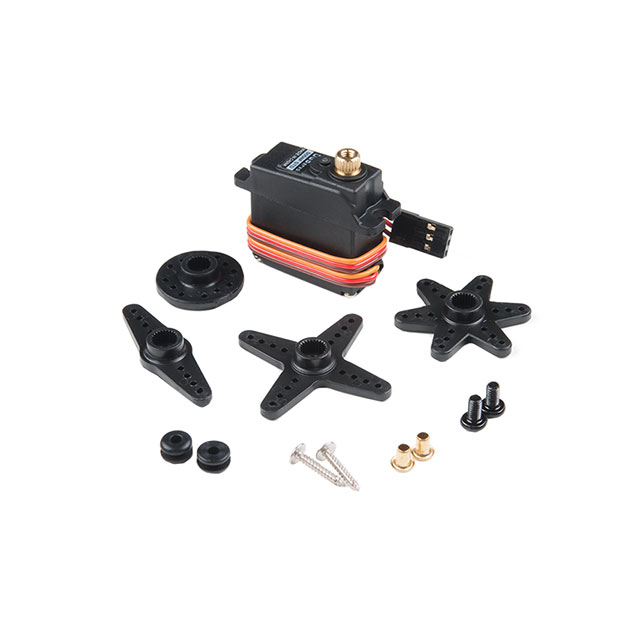

ROB-14760
Positional Rotation DC Motor Servomotor, RC (Hobby) 6VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | ROB-14760 |
|---|---|
| Approval Agency | CE |
| Function | RC (Hobby), Servomotor |
| Motor Type | Positional Rotation |
| Size / Dimension Length | 1.134 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.543 in |
| Termination Style | Wire Leads with Connector |
| Torque - Rated (mNm) | 313.5 mNm |
| Torque - Rated (oz-in) | 44.4 oz-in |
| Type | DC Motor |
| Voltage - Rated | 6 VDC |
