60348-4
ActiveTE Connectivity AMP Connectors

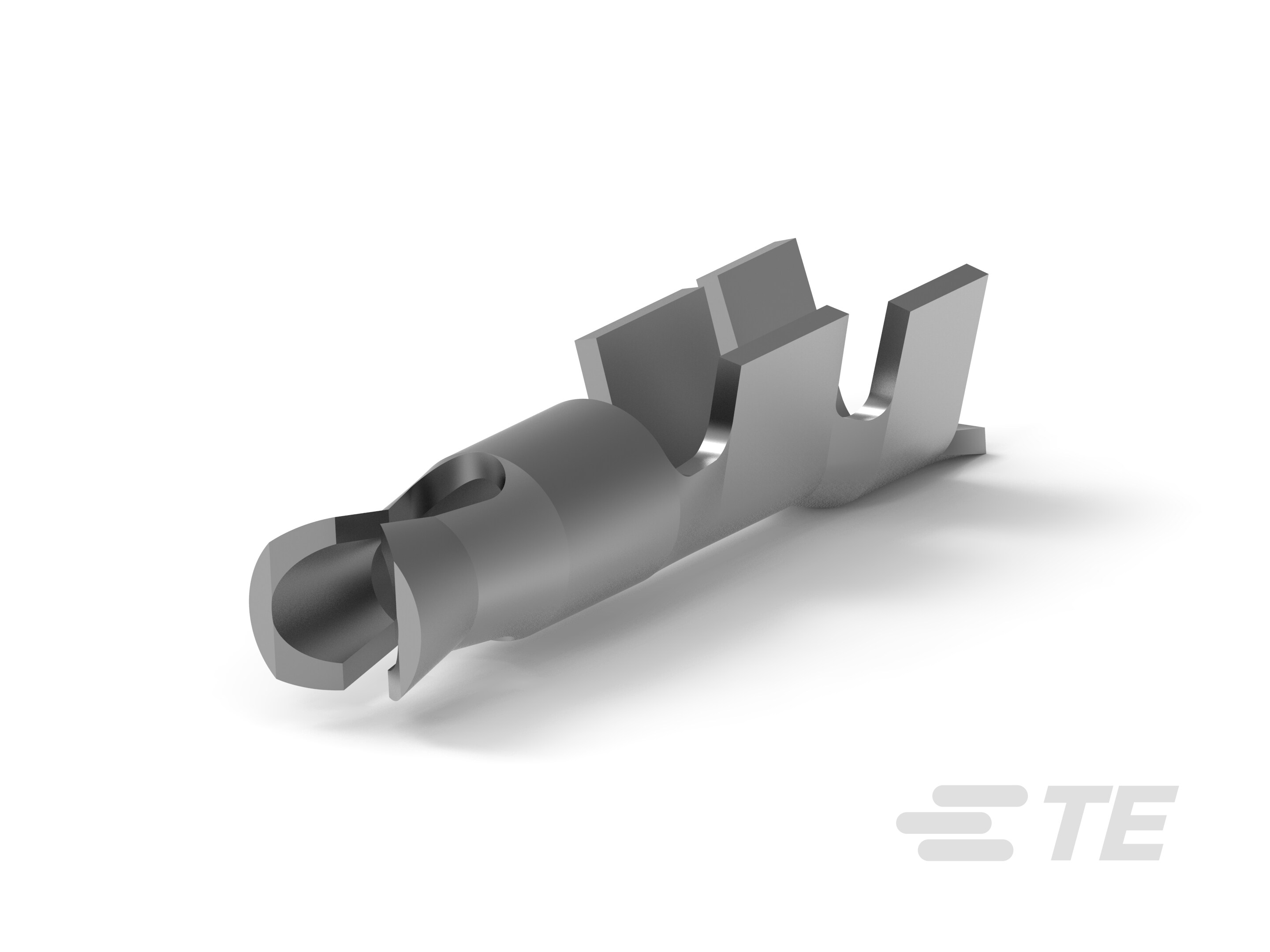

050 PIN REC 24-20 0126TPPHBZ
60348-4
ActiveTE Connectivity AMP Connectors
050 PIN REC 24-20 0126TPPHBZ
Description
General part information
60348-4
Receptacle, 24 – 20 AWG, .2 – .6 mm² Wire, 404 – 1021 CMA, Open Barrel, Tin Plating, 9.14 mm [.36 in] Length, Reel, Discrete Wire
Technical Specifications
Parameters and characteristics for this part
| Specification | 60348-4 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Diameter (Max) | 0.071 in |
| Insulation Diameter (Min) | 0.048 in |
| Length - Overall | 0.46 in |
| Terminal Type | Through Board |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
