28R1127-400
ActiveLaird Technologies EMI

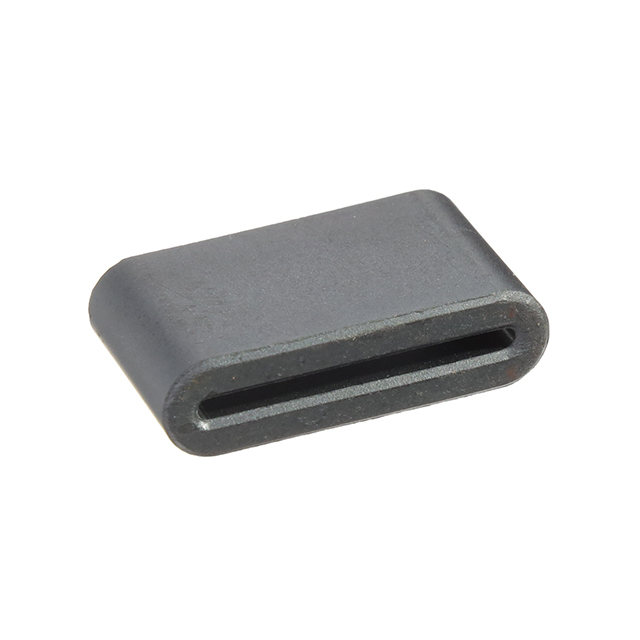

FERRITE CORE 150 OHM SOLID
28R1127-400
ActiveLaird Technologies EMI
FERRITE CORE 150 OHM SOLID
Description
General part information
28R1127-400
Solid Free Hanging Ferrite Core 150Ohm @ 100MHz ID 0.925" W x 0.067" H (23.50mm x 1.70mm) OD 1.125" W x 0.303" H (28.58mm x 7.70mm) Length 0.669" (17.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 28R1127-400 |
|---|---|
| Design | Solid |
| Impedance | 150 Ohm |
| Inner Dimension Height | 0.067 in |
| Inner Dimension Width | 0.925 in |
| Length | 0.669 in |
| Material | 28 |
| Material Temperature Rating | 28 °C |
| Mounting Type | Free Hanging |
| Outer Dimension Height | 0.303 in |
| Outer Dimension Width | 1.125 in |
| Type | Flat |
