Description
General part information

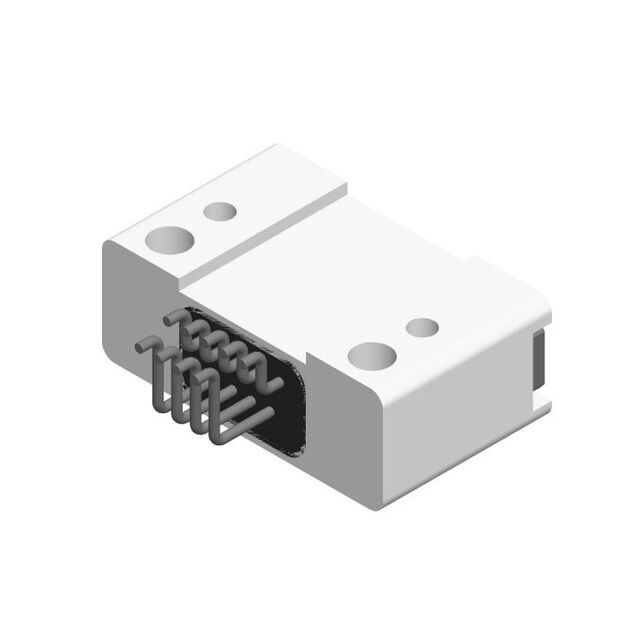

NK-2D2-009-225-TH00
9 Position D-Type, Nano-D Plug, Male Pins Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | NK-2D2-009-225-TH00 |
|---|---|
| Connector Layout Pitch | 0.025 |
| Connector Layout Row to Row | 0.025 |
| Connector Style | Nano-D, D-Type |
| Connector Type | Male Pins, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Type | Signal |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Flange Feature | Housing, Shell |
| Flange Feature Maximum | 80 |
| Flange Feature Minimum | 0 |
| Mounting Type | Panel Mount |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Primary Material | Metal |
| Shell Material, Finish | Nickel Plated, Aluminum Alloy, Electroless |
| Termination | Wire Leads |
