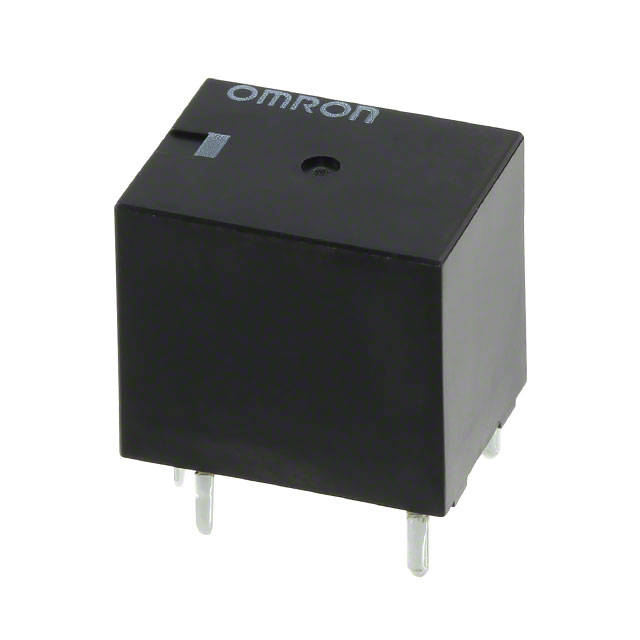

G8QE-1A DC12
ObsoleteOmron Electronics Inc-EMC Div
RELAY AUTOMOTIVE SPST 10A 12V
G8QE-1A DC12
ObsoleteOmron Electronics Inc-EMC Div
RELAY AUTOMOTIVE SPST 10A 12V
Description
General part information
G8QE-1A DC12
RELAY AUTOMOTIVE SPST 10A 12V
Technical Specifications
Parameters and characteristics for this part
| Specification | G8QE-1A DC12 |
|---|---|
| Coil Current | 66.7 mA |
| Coil Power | 800 mW |
| Coil Resistance | 180 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VAC |
| Contact Form | SPST-NO |
| Contact Material | Silver Tin (AgSn) |
| Contact Rating (Current) | 10 A |
| Features | Fully, Sealed |
| Form A Count | 1 |
| Mounting Type | Through Hole |
| Must Operate Voltage | 7.3 VDC |
| Must Release Voltage | 1 VDC |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Termination Style | PC Pin |
