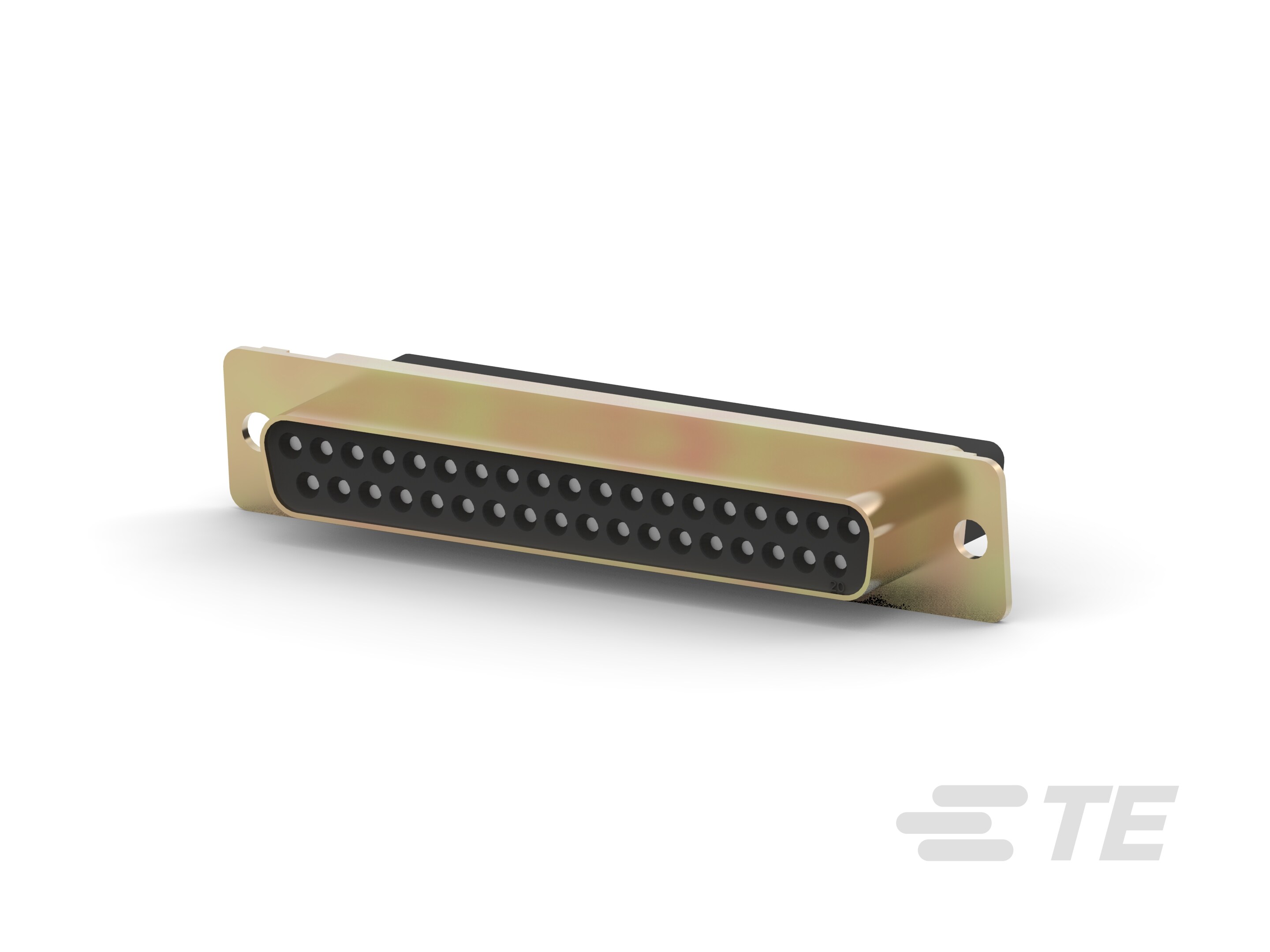

RECP ASSY SIZE 4-205209-7

205209-7

Active
TE Connectivity AMP Connectors

205209-7 - RECP ASSY SIZE 4 ROHS COMPLIANT: YES

Find alt
RECP ASSY SIZE 4-205209-7

205209-7

Active
TE Connectivity AMP Connectors

205209-7 - RECP ASSY SIZE 4 ROHS COMPLIANT: YES

Find alt

Description

General part information

205209-7

37 Position D-Shaped Connector, Receptacle, Cable-to-Cable, Panel Mount, 4 Shell Size, 2.74 mm [.108 in] Centerline, Wire & Cable, Signal

Technical Specifications

Parameters and characteristics for this part

Specification205209-7
Connector LayoutDC, C
Connector StyleD-Sub
Connector TypeReceptacle for Female Contacts
Contact TypeSignal
FinishYellow Trivalent Chromium Chromate Zinc Plated
Flange FeatureShell (Unthreaded), Housing
Mounting TypeFree Hanging (In-Line)
Number of Positions37 pos
Number of Rows2
Shell Finish Thickness200 µin
Shell MaterialSteel
Shell Size4
