MDKK3030T1R0MM
ActiveTaiyo Yuden
FIXED IND 1UH 2.4A 86 MOHM SMD
MDKK3030T1R0MM
ActiveTaiyo Yuden
FIXED IND 1UH 2.4A 86 MOHM SMD
Description
General part information
MDKK3030T1R0MM

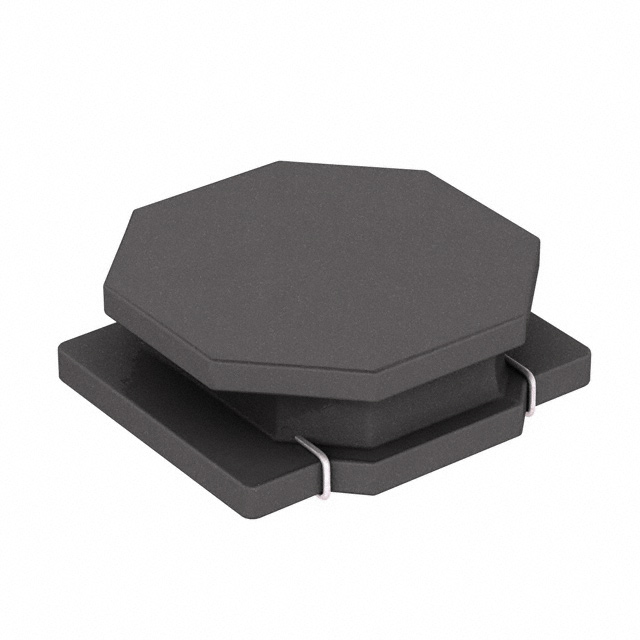

1 µH Shielded Drum Core, Wirewound Inductor 2.4 A 86mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | MDKK3030T1R0MM |
|---|---|
| Current - Saturation (Isat) | 4.4 A |
| Current Rating | 2.4 A |
| DC Resistance (DCR) (Max) | 86 mOhm |
| Height - Seated (Max) | 0.039 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.118 in |
| Size / Dimension Width | 0.118 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
