66360-1
ActiveTE Connectivity AMP Connectors

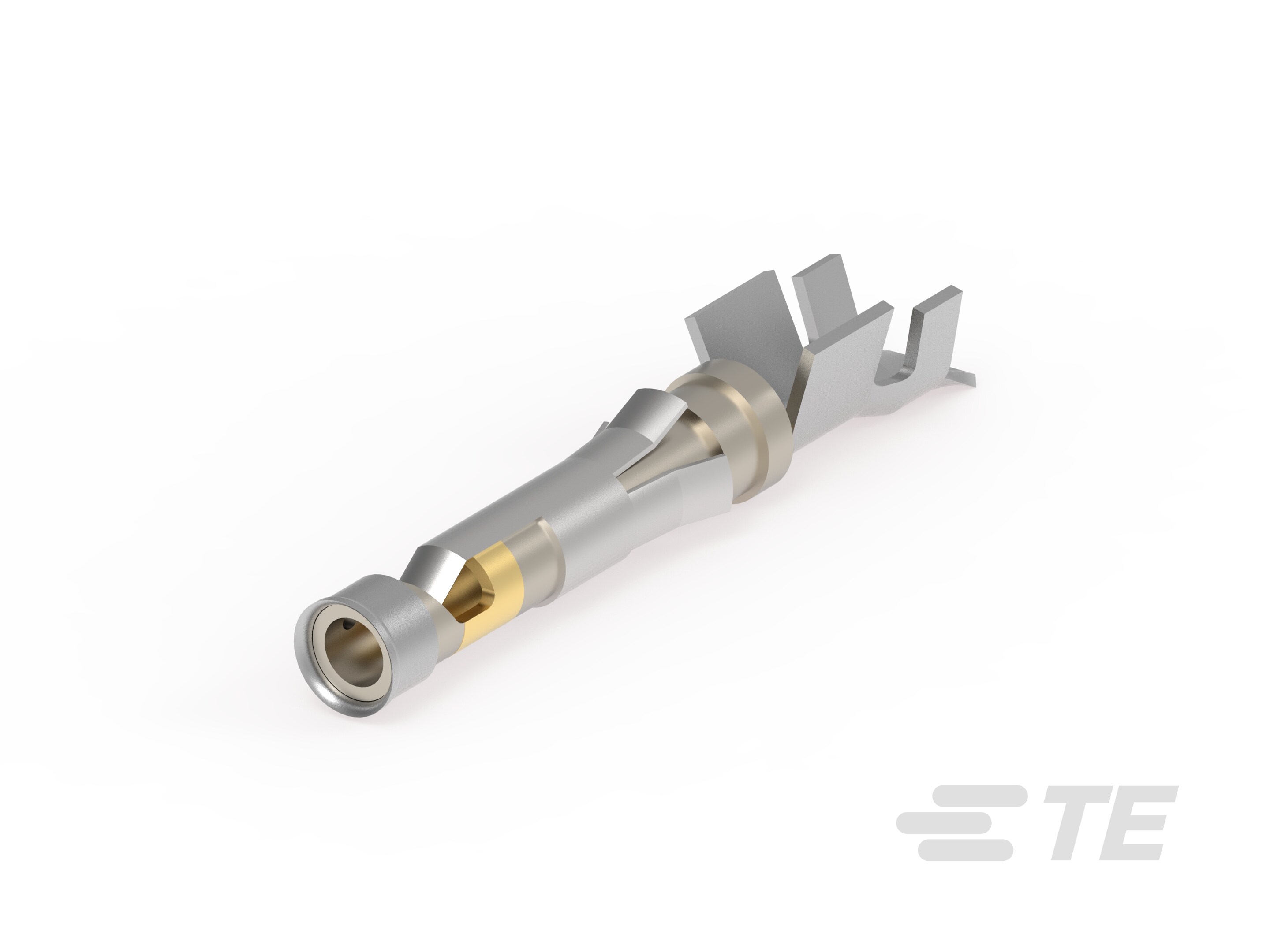

CONN SOCKET 14-18AWG GOLD CRIMP
66360-1
ActiveTE Connectivity AMP Connectors
CONN SOCKET 14-18AWG GOLD CRIMP
Description
General part information
AMP Type III+ Series
Socket Contact, Gold (Au), Size 16 Contact Size, 18 – 14 AWG, .8 – 2 mm² Wire, Crimp, Brass, Power & Signal, AMP Type III+
Technical Specifications
Parameters and characteristics for this part
| Specification | 66360-1 |
|---|---|
| Contact Finish | PdNi +Gold, Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
Datasheet
AMP Circular Connectors for Commercial Signal & Power Applications
Type III+ Stamped and Formed Contacts
Type III+ Contacts
M_SERIES_PIN_AND_SOCKET_CONNECTORS
Selection of Multimate Pin and Socket Contacts
Signal Contacts
Type III+ (Size 16) Contacts
Evaluation Testing of PdNi and Au Plated Type III+ Multimate Contacts
