0322 14
ActiveLumberg Inc

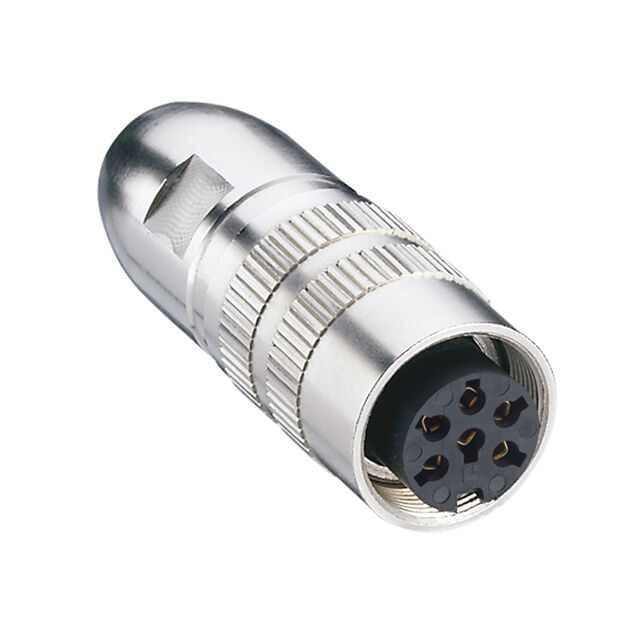

M16 SOCKET CABLEMOUNT 14 POLE
0322 14
ActiveLumberg Inc
M16 SOCKET CABLEMOUNT 14 POLE
Description
General part information
0322 14
14 Position Circular Connector Plug, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 0322 14 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver, Gold |
| Fastening Type | Threaded |
| Ingress Protection | IP68 |
| Material Flammability Rating | UL94 |
| Mounting Type | Free Hanging (In-Line), Cable Mount |
| Number of Positions | 14 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M16 |
| Shielding | Shielded |
| Termination | Solder |
