XZCPB1141L2
ActiveSCHNEIDER ELECTRIC
SENSOR CABLE, M12 RECEPTACLE, FREE END, 4 POSITIONS, 2 M, 6.6 FT, XZ SERIES
XZCPB1141L2
ActiveSCHNEIDER ELECTRIC
SENSOR CABLE, M12 RECEPTACLE, FREE END, 4 POSITIONS, 2 M, 6.6 FT, XZ SERIES
Description
General part information
XZCPB1141L2

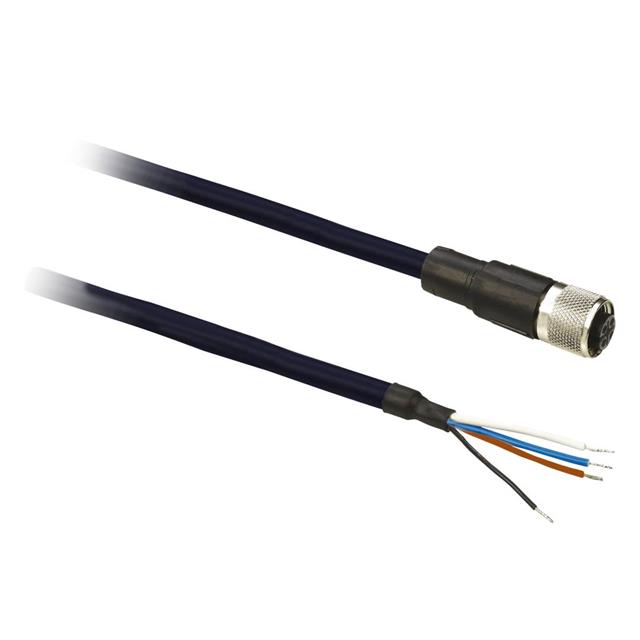

XZCPB1141L2 is a XZ series, 6.6ft, sensor cable assembly with 4 pin straight female connector M12 electrical connection at one end and open end at other.
Technical Specifications
Parameters and characteristics for this part
| Specification | XZCPB1141L2 |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Plug |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyurethane (PUR) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Length | 6.56 ft |
| Shielding | Shielded |
| Usage | Industrial Environments |
