0121 06
ActiveLumberg Inc

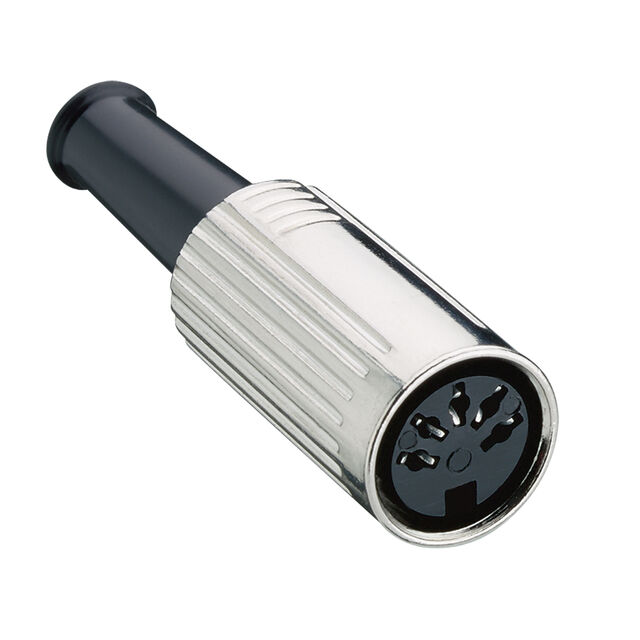

DIN SOCKET STRAIGHT CABLEMOUNT
0121 06
ActiveLumberg Inc
DIN SOCKET STRAIGHT CABLEMOUNT
Description
General part information
0121 06
6 Position Circular Connector Plug, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 0121 06 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Current Rating | 4 A |
| Fastening Type | Push-Pull |
| Features | Strain Relief |
| Material Flammability Rating | UL94 |
| Mounting Type | Free Hanging (In-Line), Cable Mount |
| Number of Positions | 6 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 100 VAC |
