Description
General part information

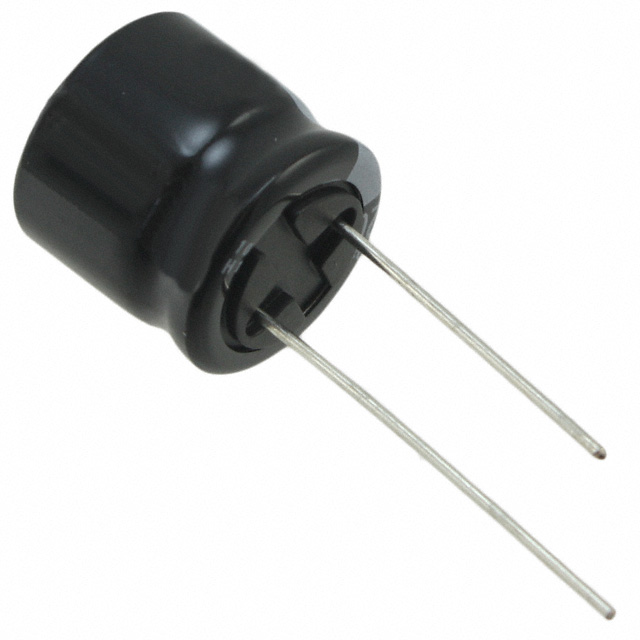

UHE1V681MHT3
680 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UHE1V681MHT3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 680 µF |
| Height - Seated (Max) | 0.591 in |
| Impedance | 42 mOhm |
| Lead Spacing | 0.295 in |
| Lifetime | 10000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 1.455 A, 1.94 A |
| Size / Dimension Diameter | 0.63 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
