Specification	1200850001

Connector Style	Standard
Convert From (Adapter End)	Female Sockets
Convert To (Adapter End)	Male Pins
Current Rating	4 A
Fastening Type	Threaded
Housing Color	Black
Housing Material	TPU, Thermoplastic Polyurethane
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	4
Number of Positions (Convert To)	4
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Orientation (Convert From)	Keyed
Orientation (Convert To)	Keyed
Primary Material	Plastic
Shell Size - Insert (Convert From)	M12
Shell Size - Insert (Convert To)	M12
Shielding	Unshielded
Voltage Rating	250 V

120085 Series

Part	Color	Contact Finish - Mating	Features	Voltage Rating	Voltage Rating (Type)	Termination	Mounting Type	Shielding	Fastening Type	Current Rating	Cable Opening (Max)	Cable Opening (Min)	Insert Material	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Number of Positions	Connector Type	Shell Material	Backshell Material, Plating	Applications	Shell Finish	Primary Material	Shell Size - Insert	Voltage Rating (DC)	Voltage Rating (AC)
Molex 1200850021	Black	Nickel	Coupling Nut	250 V	DC	Crimp	Free Hanging (In-Line)	Unshielded	Threaded	4 A	0.256 in	0.098 in	Nylon PA Polyamide	Keyed	Dust Tight Waterproof	IP67	105 °C	-25 °C	Brass	4	Male Pins Plug

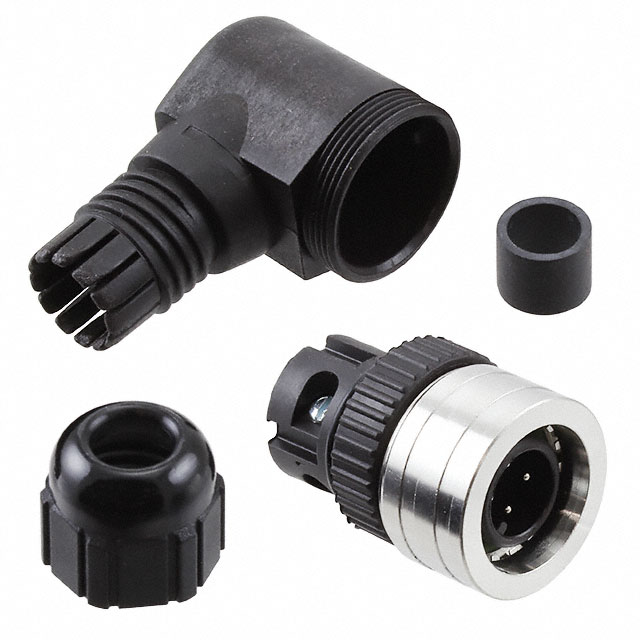

Molex 1200850007	Black Silver	Gold	Backshell	250 V	DC	Screw	Free Hanging (In-Line) Right Angle		Push-Pull	4 A	0.26 in	0.13 in	Nylon PA Polyamide	Keyed	Dust Tight Water Resistant Waterproof	IP67 IP68 IP69K	90 °C	-25 °C	Brass	4	Male Pins Plug	Brass	Nylon Polyamide (PA)	Industrial Telecommunications	Nickel	Metal	M12-4
Molex 1200855002
Molex 1200850009
Molex 1200850015	Black Silver	Gold	Backshell	250 V	DC	Screw	Free Hanging (In-Line) Right Angle		Push-Pull	4 A	0.26 in	0.13 in	Nylon PA Polyamide	Keyed	Dust Tight Water Resistant Waterproof	IP67 IP68 IP69K	90 °C	-25 °C	Brass	4	Female Sockets Plug	Brass	Nylon Polyamide (PA)	Industrial Telecommunications	Nickel	Metal	M12-4
Molex 1200850016	Black Silver	Gold	Backshell			Screw	Free Hanging (In-Line) Right Angle		Push-Pull	4 A	0.26 in	0.13 in	Nylon PA Polyamide	Keyed	Dust Tight Water Resistant Waterproof	IP67 IP68 IP69K	90 °C	-25 °C	Brass	5	Female Sockets Plug	Brass	Nylon Polyamide (PA)	Industrial Telecommunications	Nickel	Metal	M12-5	36 VDC	30 VAC
Molex 1200855014
Molex 1200850005	Black Silver	Gold	Backshell	250 V	DC	Screw	Free Hanging (In-Line)		Push-Pull	4 A	0.319 in	0.161 in	Nylon PA Polyamide	Keyed	Dust Tight Water Resistant Waterproof	IP67 IP68 IP69K	90 °C	-25 °C	Brass	4	Male Pins Plug	Brass	Nylon Polyamide (PA)	Industrial Telecommunications	Nickel	Metal	M12-4
Molex 1200850012	Black Silver	Gold	Backshell			Screw	Free Hanging (In-Line)		Push-Pull	4 A	0.26 in	0.13 in	Nylon PA Polyamide	Keyed	Dust Tight Water Resistant Waterproof	IP67 IP68 IP69K	90 °C	-25 °C	Brass	5	Female Sockets Plug	Brass	Nylon Polyamide (PA)	Industrial Telecommunications	Nickel	Metal	M12-5	36 VDC	30 VAC
Molex 1200850003	Black Silver	Gold	Backshell	250 V	DC	Screw	Free Hanging (In-Line)		Push-Pull	4 A	0.26 in	0.13 in	Nylon PA Polyamide	Keyed	Dust Tight Water Resistant Waterproof	IP67 IP68 IP69K	90 °C	-25 °C	Brass	4	Male Pins Plug	Brass	Nylon Polyamide (PA)	Industrial Telecommunications	Nickel	Metal	M12-4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

1200850001 | Datasheet
