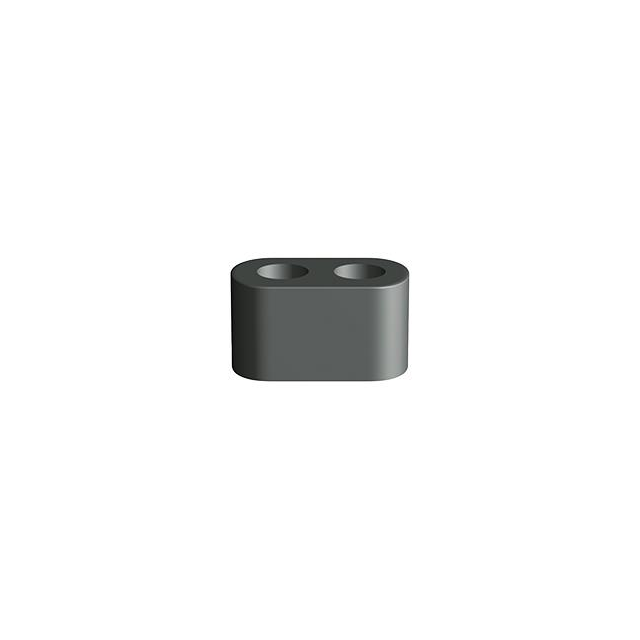

Specification	B62152A0027X030

Core Factor (ΣI/A) mm⁻¹	2.2 mm⁻¹
Core Hole Count	2
Core Type	Multi-Hole
Effective Area (Ae)	1.7 mm²
Effective Length (le)	3.7 mm
Effective Magnetic Volume (Ve)	6.3 mm³
Finish	Uncoated
Gap	Ungapped
Height	0.079 in
Inductance Factor (Al)	2.4 µH
Initial Permeability (µi)	4300
Length	0.142 in
Material	N30
Tolerance	30 %
Width	0.083 in
