SDG250
ActivePasternack
D SUB JACK SCREW, 12.24 MM, 4-40
SDG250
ActivePasternack
D SUB JACK SCREW, 12.24 MM, 4-40
Description
General part information
SDG250

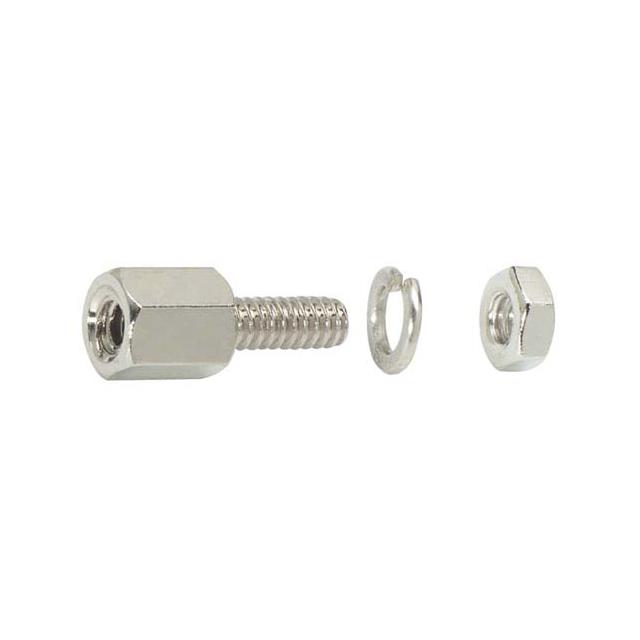

The SDG250 is a D-sub Hardware Jack Screw Kit, SDG series multi-purpose hardware can be used to panel mount D-sub adapters and connectors. Screw lock body length of 0.232-inch with #4-40 Female threads, male threads #4-40 x 0.250-inch long.
Technical Specifications
Parameters and characteristics for this part
| Specification | SDG250 |
|---|---|
| Accessory Type | Jackscrew Socket |
| Features | Hardware Included |
| For Use With/Related Products | D-Sub Connectors |
| Length - Below Head | 0.25 in |
| Length - Threaded Portion Below Head | 0.2 in |
| Thread Size | 4-40 Screw, 4-40 Socket |
