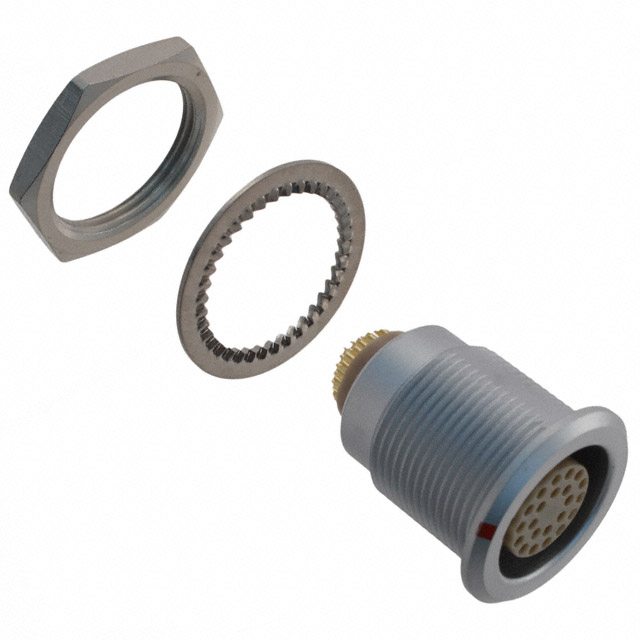

Specification	EGG.3B.322.CLL

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 µin
Contact Material	Bronze
Current Rating	5.5 A
Fastening Type	Push-Pull
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyetheretherketone, PEEK
Material Flammability Rating	UL94 V-0
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Number of Positions	22
Operating Temperature (Max)	250 °C
Operating Temperature (Min)	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	322
Shell Size - Insert	322
Shielding	Shielded
Termination	Solder Cup

EGG.3B Series

Part	Number of Positions	Note	Ingress Protection Description	Ingress Protection IP Rating	Contact Shape	Shielding	Type	Operating Temperature (Max)	Operating Temperature (Min)	Contact Type	Connector Type	Orientation	Shell Size - Insert	Shell Size - Insert	Contact Size	Contact Finish - Mating	Current Rating	Insert Material	Contact Material	Contact Finish Thickness - Mating	Features	Termination	Material Flammability Rating	Mounting Feature	Color	Mounting Type	Shell Material	Fastening Type	Shell Finish	Primary Material	Number of Positions (Standard)	Position Types	Number of Positions (Total)	Number of Positions (Special)	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Contact Finish	Contact Finish Thickness	Contact Termination
LEMO EGG.2B.410.YL	10	Contacts Not Included Insert Only Requires Shell	Dust Protected	IP50	Circular	Unshielded	For Female Sockets	250 °C	-55 °C	Crimp Solder Cup	Insert	G	410	410	0.9 mm
LEMO EGG.2B.319.ZLL	19		Dust Protected	IP50		Shielded		250 °C	-55 °C		Female Sockets Insert	G	319	319		Gold	5 A	PEEK Polyetheretherketone	Bronze	59 µin	Insert Only Requires Shell	Solder Cup	UL94 V-0
LEMO EGG.2B.305.ZLL	5		Dust Protected	IP50		Shielded		250 °C	-55 °C		Female Sockets Insert	G	305	305		Gold	14 A	PEEK Polyetheretherketone	Bronze	59 µin	Insert Only Requires Shell	Solder Cup	UL94 V-0
LEMO EGG.2B.416.YL	16	Contacts Not Included Insert Only Requires Shell	Dust Protected	IP50	Circular	Unshielded	For Female Sockets	250 °C	-55 °C	Crimp Solder Cup	Insert	G	416	416	0.7 mm
LEMO EGG.2B.306.CLN	6		Dust Protected	IP50		Shielded		250 °C	-55 °C		Female Sockets Receptacle	G	306	306		Gold	12 A	PEEK Polyetheretherketone	Bronze	59 µin		Solder	UL94 V-0	Bulkhead Rear Side Nut	Silver	Panel Mount Through Hole	Brass	Push-Pull	Chrome	Metal
LEMO EGG.2B.810.CLL1			Dust Protected	IP50		Shielded		250 °C	-55 °C		Female Sockets Receptacle	G	810	810		Gold	7 A	PEEK Polyetheretherketone	Bronze	59 µin		Solder Cup	UL94 V-0	Bulkhead Rear Side Nut	Silver	Panel Mount	Brass	Push-Pull	Chrome	Metal	10	Coax	11	1
LEMO EGG.2B.402.YL	2	Contacts Not Included Insert Only Requires Shell	Dust Protected	IP50	Circular	Unshielded	For Female Sockets	250 °C	-55 °C	Crimp Solder Cup	Insert	G	402		2 mm
LEMO EGG.2B.308.CLN	8		Dust Protected	IP50		Shielded		250 °C	-55 °C		Female Sockets Receptacle	G	308	308		Gold	10 A	PEEK Polyetheretherketone	Bronze	59 µin		Solder	UL94 V-0	Bulkhead Rear Side Nut	Silver	Panel Mount Through Hole	Brass	Push-Pull	Chrome	Metal
LEMO EGG.2B.655.ZZM							Machined Signal			Socket					0.7 mm				Bronze																0.34 mm²	0.14 mm²	25.5 AWG	22 AWG	Gold	59 µin	Crimp
LEMO EGG.2B.304.CLN	4		Dust Protected	IP50		Shielded		250 °C	-55 °C		Female Sockets Receptacle	G	304	304		Gold	15 A	PEEK Polyetheretherketone	Bronze	59 µin		Solder	UL94 V-0	Bulkhead Rear Side Nut	Silver	Panel Mount Through Hole	Brass	Push-Pull	Chrome	Metal
