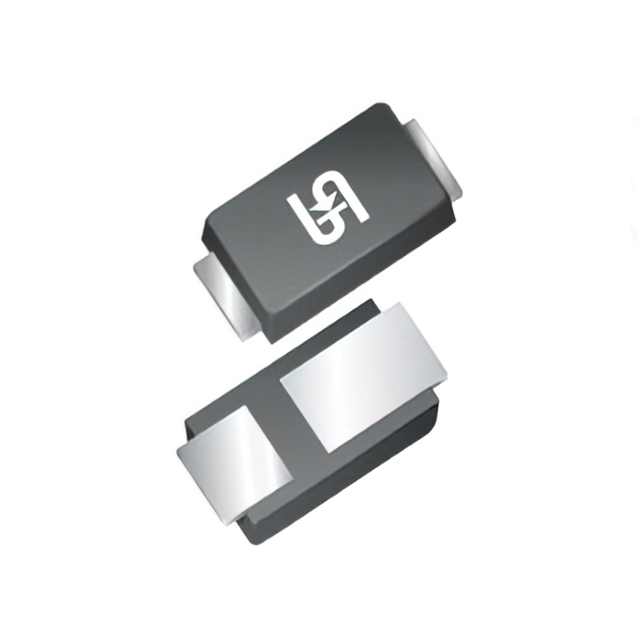

SDLWH

Active

Taiwan Semiconductor Corporation

0.8A, 200V, STANDARD RECOVERY RE

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

0.8A, 200V, STANDARD RECOVERY RE

Technical Specifications

Parameters and characteristics for this part

Specification	SDLWH

Capacitance @ Vr, F	7 pF
Current - Average Rectified (Io)	800 mA
Current - Reverse Leakage @ Vr	1 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-123W
Qualification	AEC-Q101
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	SOD-123W
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V

0.8A, 200V, STANDARD RECOVERY RE

Part	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Mounting Type	Technology	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Qualification	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Grade	Speed	Speed	Package / Case
Taiwan Semiconductor Corporation SDLWH	1 µA	7 pF	Surface Mount	Standard	SOD-123W	150 °C	-55 °C	AEC-Q101	800 mA	200 V	Automotive	Standard Recovery >500ns	200 mA	SOD-123W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 200 V 800mA Surface Mount SOD-123W
