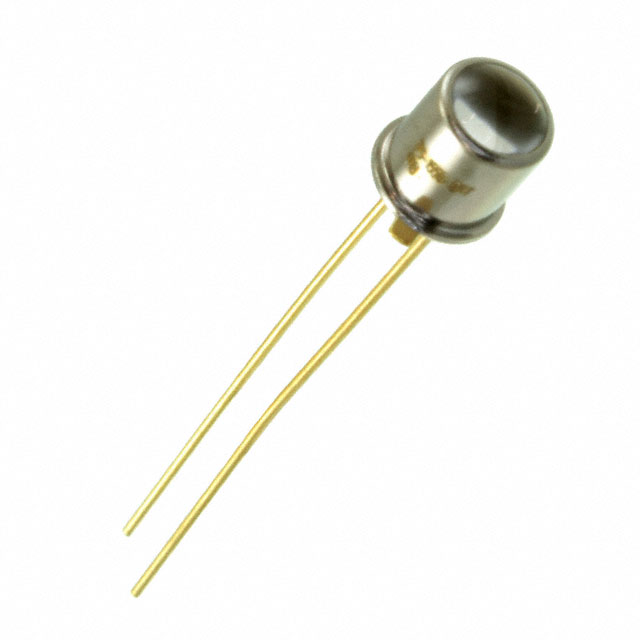

LS-1300-017

Active

Advanced Photonix

1300NM AIGAAS LED ASSY

Search across all available documentation for this part.

Active

Advanced Photonix

1300NM AIGAAS LED ASSY

Technical Specifications

Parameters and characteristics for this part

1300NM AIGAAS LED ASSY

Part	Package / Case	Current - DC Forward (If) (Max) [Max]	Type	Orientation	Voltage - Forward (Vf) (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Wavelength [Max]	Wavelength [Min]	Wavelength	Mounting Type
Advanced Photonix LS-1300-017	TO-46-2 Lens Top Metal Can	100 mA	Infrared (IR)	Top View	0.85 V	-40 °C	100 °C	1330 nm	1270 nm	1300 nm	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	120	$ 20.67

General part information

Infrared (IR) Emitter 1300nm (1270nm ~ 1330nm) 0.85V 100mA TO-46-2 Lens Top Metal Can
