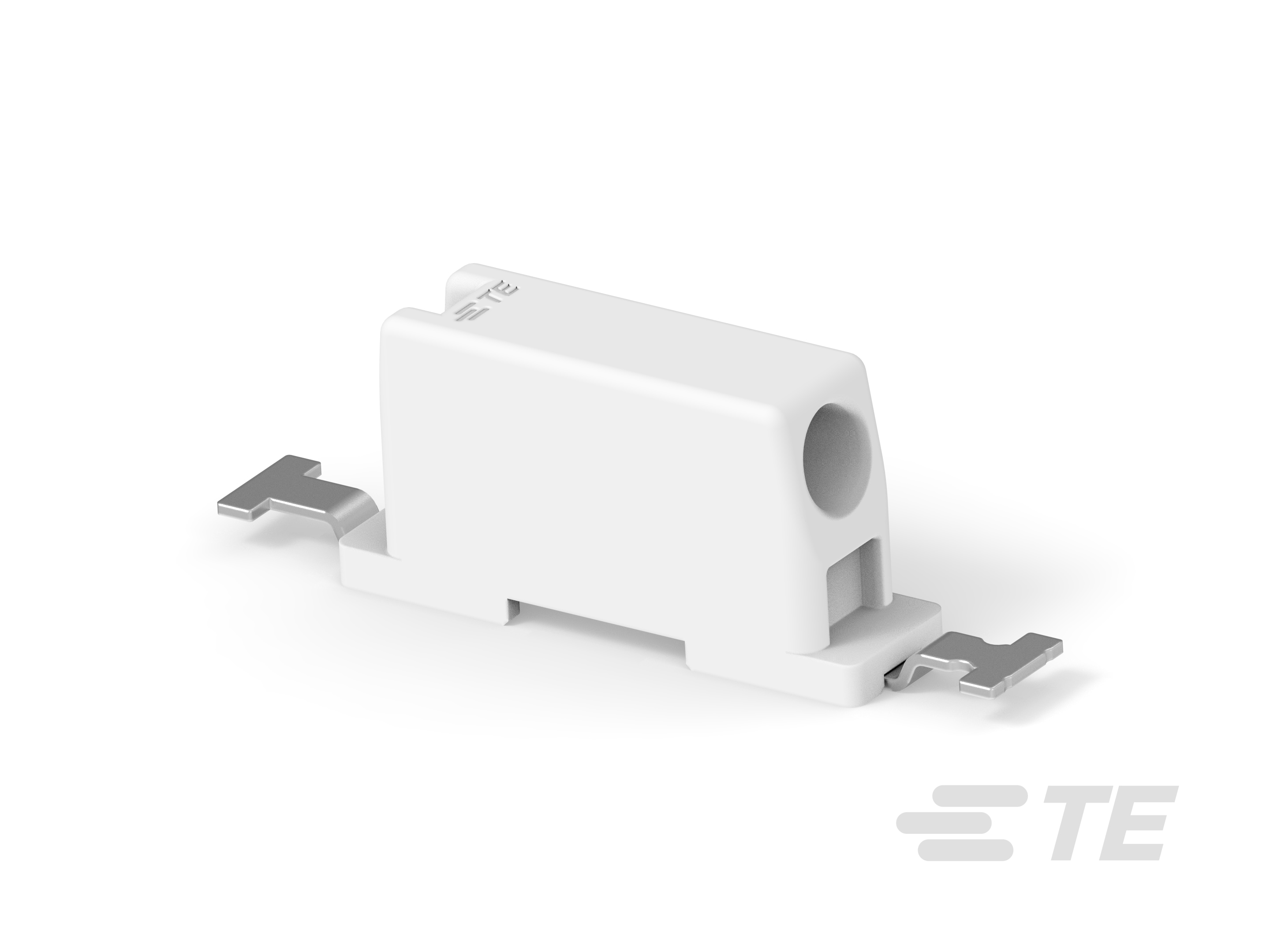

2834331-1
ActiveTE Connectivity AMP Connectors
LIGHTING CONNECTORS 6.5PITCH ITB CONN_1P_WO CAP_NATURAL
2834331-1
ActiveTE Connectivity AMP Connectors
LIGHTING CONNECTORS 6.5PITCH ITB CONN_1P_WO CAP_NATURAL
Description
General part information
Insulation Displacement Connectors Closed End Series
1 Position Ballast Connector, Connector, Wire-to-Board, 6.5 mm Centerline, Printed Circuit Board, Insulation Displacement Connectors Closed End
Technical Specifications
Parameters and characteristics for this part
| Specification | 2834331-1 |
|---|---|
| Color | Gray |
| Current | 13 A |
| Features | Interlocking (Side) |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.098 in |
| Positions Per Level | 12 |
| Voltage | 150 V |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
