752201473GP
ActiveCTS Resistor Products
RES ARRAY 18 RES 47K OHM 20DRT
752201473GP
ActiveCTS Resistor Products
RES ARRAY 18 RES 47K OHM 20DRT
Description
General part information
752201473GP

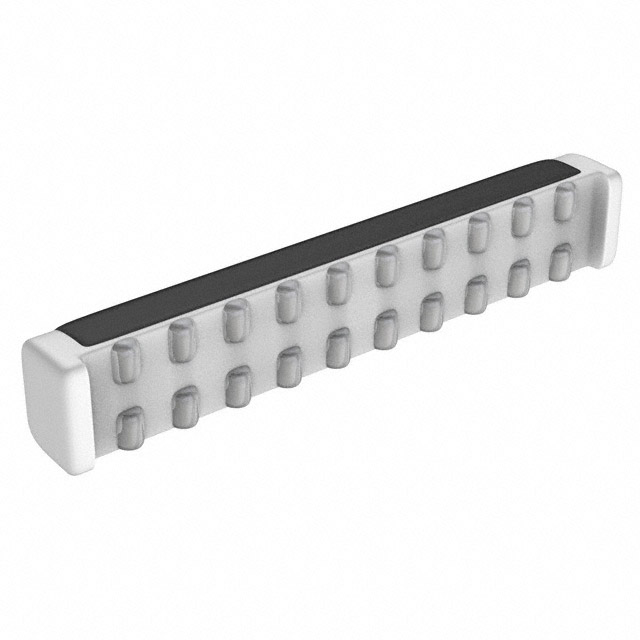

47k Ohm ±2% 80mW Power Per Element Bussed 18 Resistor Network/Array ±200ppm/°C 20-DRT
Technical Specifications
Parameters and characteristics for this part
| Specification | 752201473GP |
|---|---|
| Circuit Type | Bussed |
| Height - Seated (Max) | 0.1 in |
| Mounting Type | Surface Mount |
| Number of Pins | 20 |
| Number of Resistors | 18 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 20-DRT |
| Power Per Element | 80 mW |
| Resistance | 47 kOhm |
| Size / Dimension Length | 0.565 in |
| Size / Dimension Width | 0.08 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 2 % |
