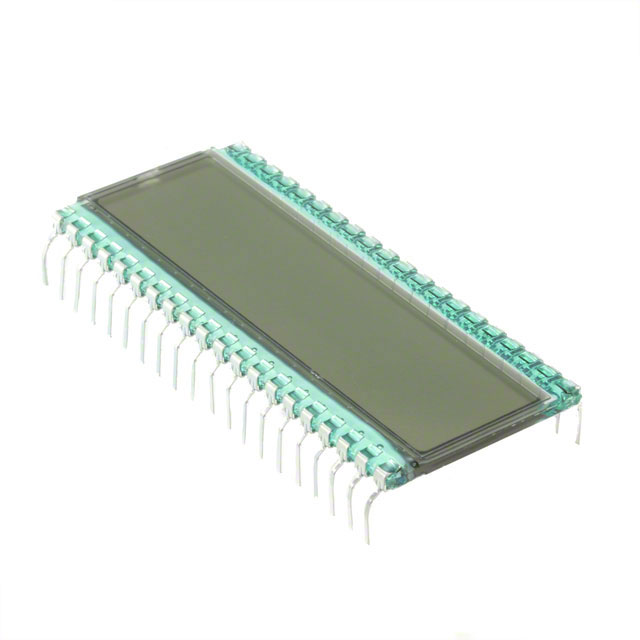

LCD-A401C52TR

Active

Lumex Opto/Components Inc.

LCD MOD 4 DIG 4 X 1 REFLECTIVE

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 4 DIG 4 X 1 REFLECTIVE

Technical Specifications

Parameters and characteristics commom to parts in this series

LCD MODULE 4 DIG 4 X 1 TRNSFL

Part	Character Format	Viewing Area [x]	Viewing Area [y]	Display Format [y]	Display Format [x]	Number of Characters	Operating Temperature [Min]	Operating Temperature [Max]	Text Color	Background Color	Display Mode	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Display Type	Backlight	Character Size [y]	Character Size [z]	Interface
Lumex Opto/Components Inc. LCD-A401C39TF	7-Segment	43.18 mm	12.7 mm	1	4	4
Lumex Opto/Components Inc. LCD-A401C71TR	7-Segment	62.23 mm	30.48 mm	1	4	4	-40 °C	105 ░C	Black	Gray	Reflective	38.1 mm	2.18 mm	69.85 mm	TN - Twisted Nematic	Without Backlight	9 mm	18 mm	Parallel
Lumex Opto/Components Inc. LCD-A401C52TR	7-Segment	45.72 mm	17.78 mm	1	4	4	-40 °C	105 ░C	Black	Gray	Reflective	30.48 mm	2.8 mm	50.8 mm	TN - Twisted Nematic	Without Backlight			Parallel
Lumex Opto/Components Inc. LCD-A401C39TR	7-Segment	43.18 mm	12.7 mm	1	4	4	-40 °C	105 ░C	Black	Gray	Reflective	22.73 mm	2.5 mm	50.8 mm	TN - Twisted Nematic	Without Backlight			Parallel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Character Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight Parallel 50.80mm x 30.48mm x 2.80mm
