FM26VNA003-36
ActiveFairview Microwave
CBL ASSY 3.5MMPLUG-3.5MMPLUG 36
FM26VNA003-36
ActiveFairview Microwave
CBL ASSY 3.5MMPLUG-3.5MMPLUG 36
Description
General part information
FM26VNA003-36

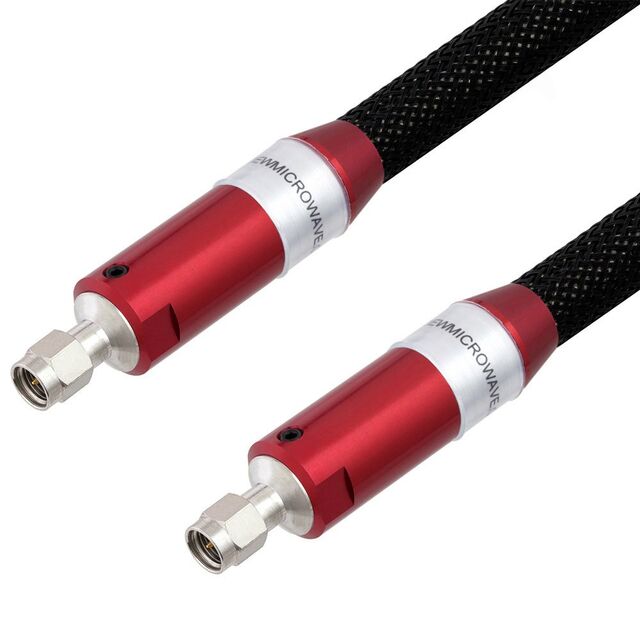

Cable Assembly Coaxial 3.5mm to 3.5mm VNA 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FM26VNA003-36 |
|---|---|
| 1st Connector | Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 3.5 mm |
| 1st Contact Gender | Male |
| 2nd Connector | Plug |
| 2nd Connector Diameter | 3.5 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | VNA |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 26.5 GHz |
| Length | 36 in |
| Operating Temperature | 125 °C |
| Overall Impedance | 50 Ohms |
| Style | 3.5mm to 3.5mm |
