NTCLE305E4103SB
ActiveTHERMISTOR NTC 10K OHM 2.19% 2-PIN WIRE 3984K -4.5 TO -4 BOX AUTOMOTIVE AEC-Q200
NTCLE305E4103SB
ActiveTHERMISTOR NTC 10K OHM 2.19% 2-PIN WIRE 3984K -4.5 TO -4 BOX AUTOMOTIVE AEC-Q200
Description
General part information
NTCLE305E4103SB

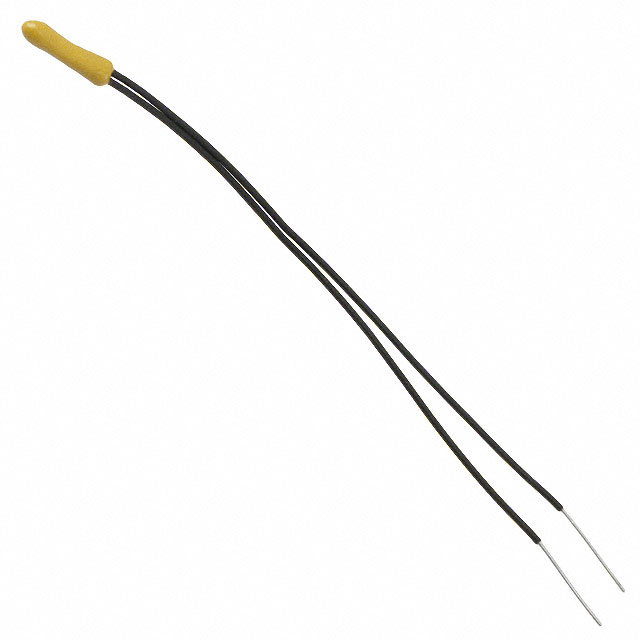

The NTCLE305E4103SB is a Thermistor with Microchip sensor. Negative temperature coefficient thermistor consists of a micro NTC chip with two insulated solid silver plated nickel wires and coated with an ochre-coloured epoxy lacquer. Flexible insulated leads for special mounting or assembly. Exceptional withstanding in thermal shocks. Accurate over a wide temperature range.
Technical Specifications
Parameters and characteristics for this part
| Specification | NTCLE305E4103SB |
|---|---|
| B Value (25/85) | 3984 K |
| B Value Tolerance | 0.5 % |
| Length - Lead Wire | 1.22 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Bead |
| Power - Max | 50 mW |
| Resistance (Ohms) | 10 kOhm |
| Resistance Tolerance (%) | 2.2 % |
