CST306-1A
ActiveTriad Magnetics
CURRENT SENSING TRANSFORMER, HIGH FREQUENCY, 1:50, 3.5 MH, 35 A, 500 VΜS, 20KHZ TO 200KHZ, 0.34 OHM
CST306-1A
ActiveTriad Magnetics
CURRENT SENSING TRANSFORMER, HIGH FREQUENCY, 1:50, 3.5 MH, 35 A, 500 VΜS, 20KHZ TO 200KHZ, 0.34 OHM
Description
General part information
CST306-1A

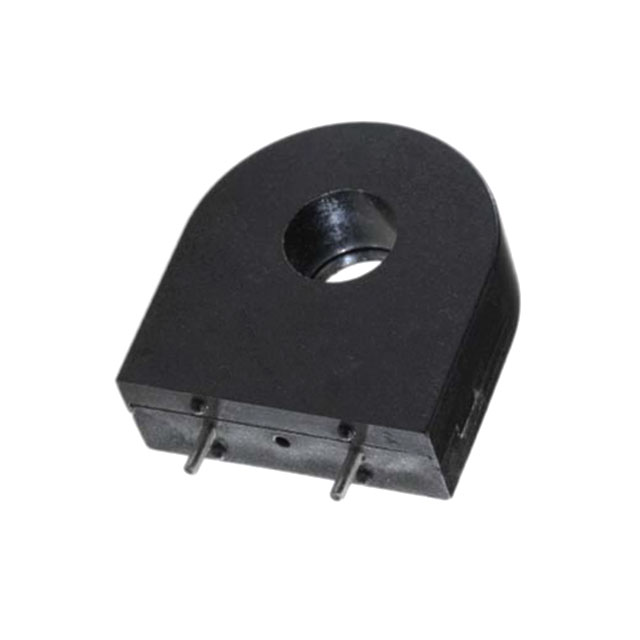

35 A Current Sense Transformer 20kHz ~ 200kHz 340mOhm Max 3.5 mH Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | CST306-1A |
|---|---|
| Current Rating | 35 A |
| Current Ratio | 50 ratio |
| DC Resistance (DCR) (Max) | 340 mOhm |
| ET (Volt-Time) | 500 VµS |
| Frequency Range (Max) | 200 kHz |
| Frequency Range (Min) | 20 kHz |
| Height - Seated (Max) | 0.915 in |
| Inductance | 3.5 mH |
| Mounting Type | Through Hole |
| Size / Dimension Length | 0.69 in |
| Size / Dimension Width | 0.385 in |
| Termination Style | PC Pin |
| Type | Non-Invasive (Solid Core) |
