WPDB25S-KIT

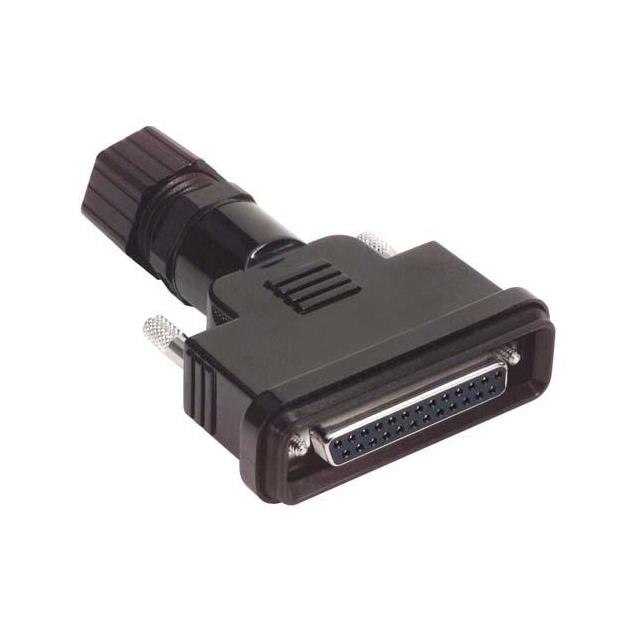

25 Position D-Sub Receptacle, Female Sockets Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | WPDB25S-KIT |
|---|---|
| Connector Layout | DB, B |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Type | Signal |
| Dielectric Material | Acrylonitrile Butadiene Styrene (ABS) |
| Features | Backshell |
| Flange Feature | Shell (Unthreaded), Housing |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Shell Size | 3 |
| Termination | Solder Cup |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
