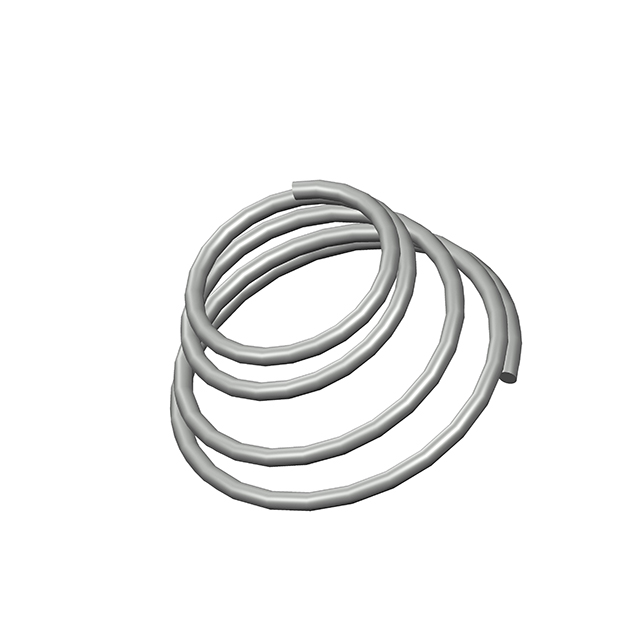

TA-2216CS
ActiveCentury Spring Corp
LO= 1.781, SO= 1.062, W= 0.091
TA-2216CS
ActiveCentury Spring Corp
LO= 1.781, SO= 1.062, W= 0.091
Description
General part information
TA-2216CS
LO= 1.781, SO= 1.062, W= 0.091
Technical Specifications
Parameters and characteristics for this part
| Specification | TA-2216CS |
|---|---|
| Diameter - Inside | 0.88 in |
| Diameter - Large Outside | 1.781 in |
| Diameter - Small Outside | 1.062 in |
| End Style | Closed |
| Finish | None |
| Free Length | 0.94 in |
| Material | Spring Steel |
| Rate (lbs/in) | 20.9 lbs/in |
| Type | Tapered |
| Wire Diameter | 0.091 in |
