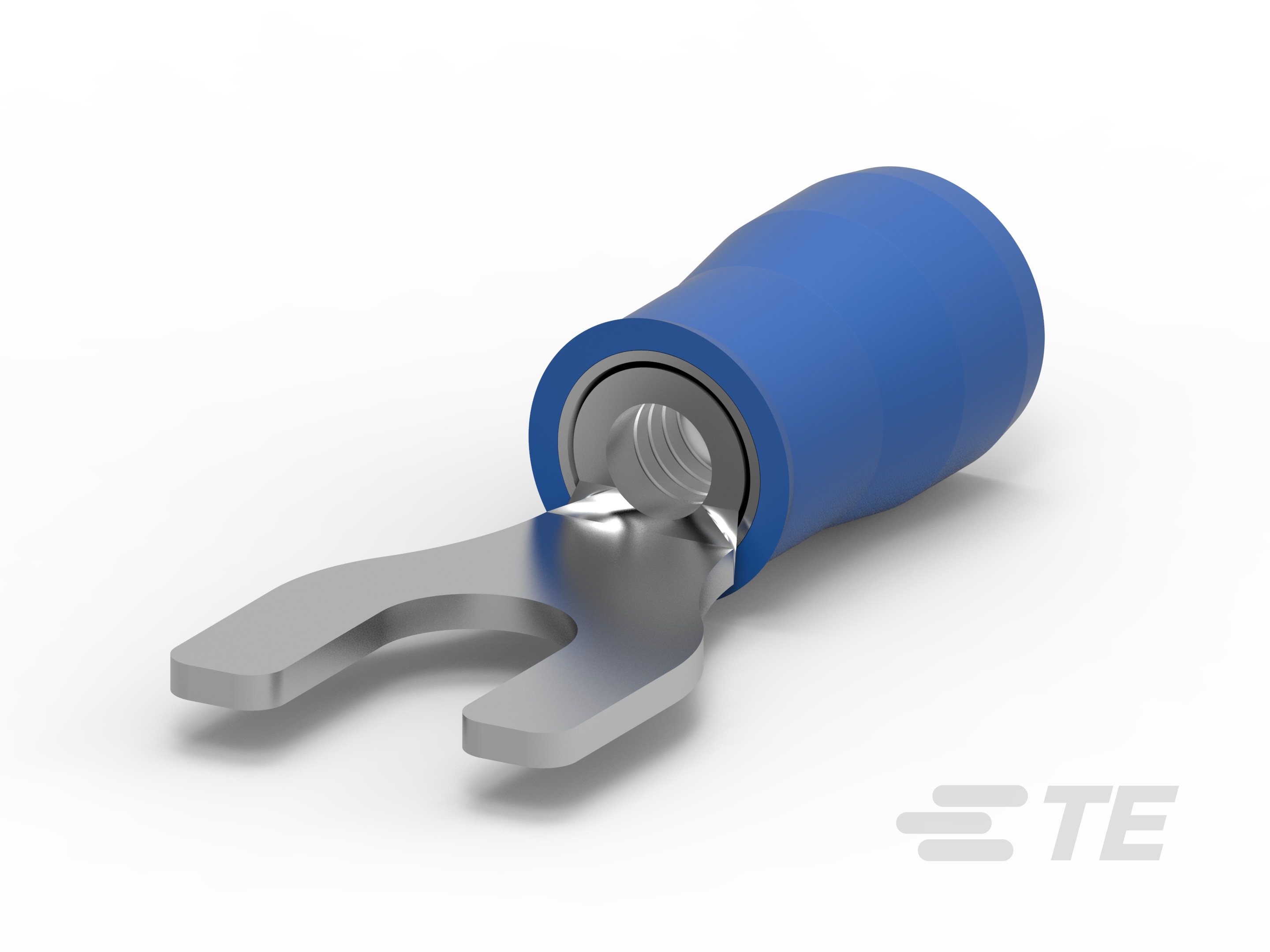

TERMINAL,PIDG SPD 16-14 10-32057

32057

Active
TE Connectivity AMP Connectors

CONN SPADE TERM 14-16AWG #10 BLU

Find alt
TERMINAL,PIDG SPD 16-14 10-32057

32057

Active
TE Connectivity AMP Connectors

CONN SPADE TERM 14-16AWG #10 BLU

Find alt

Description

General part information

32057

Spade Tongue Terminal, 16 AWG, #10 Stud, 4.82 mm [.19 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated, PIDG

Technical Specifications

Parameters and characteristics for this part

Specification32057
ColorBlue
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination
InsulationInsulated
Length - Overall0.908 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size10 Stud
Terminal TypeStandard
TerminationCrimp
Width - Outer Edges0.375 in
Wire Gauge (AWG) (Max)16 AWG
Wire Gauge (AWG) (Min)14 AWG
