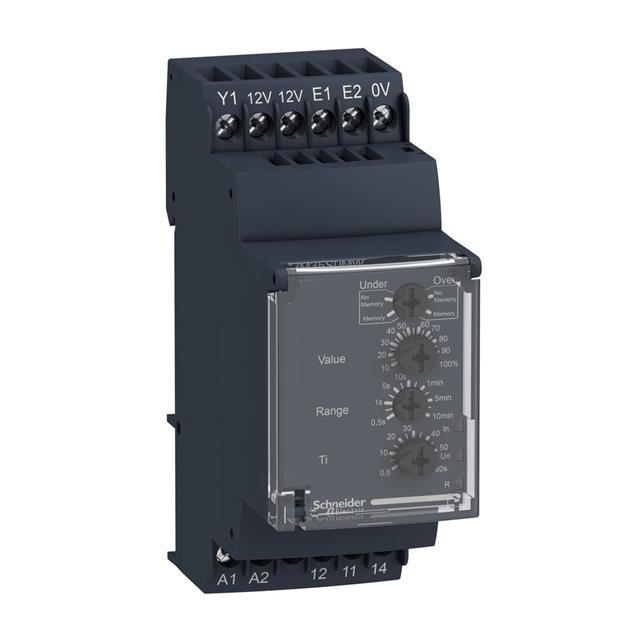

RM35S0MW
ActiveSCHNEIDER ELECTRIC
SPEED CONTROL RELAY, 24 TO 240 V AC, 3 W, 5 A
RM35S0MW
ActiveSCHNEIDER ELECTRIC
SPEED CONTROL RELAY, 24 TO 240 V AC, 3 W, 5 A
Description
General part information
RM35S0MW
Speed Monitoring 24 ~ 240VAC/DC
Technical Specifications
Parameters and characteristics for this part
| Specification | RM35S0MW |
|---|---|
| Circuit | SPDT (1 Form C) |
| Contact Rating (Current) | 5 A |
| Delay Time (Maximum) | 60 Sec |
| Delay Time (Minimum) | 0.6 Sec |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | Relay |
| Trip Current (Max) | 1 A |
| Trip Current (Min) | 0.004 A |
| Trip Status | Low, Energized High |
| Type | Speed Monitoring |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 24 VAC |
| Voltage Rating | 250VAC, 250VDC |
