PEP0603Y1502WNTA
ActiveVishay Dale
PEP0603 10PPM/C 15K 0.05% N TA
PEP0603Y1502WNTA
ActiveVishay Dale
PEP0603 10PPM/C 15K 0.05% N TA
Description
General part information
PEP0603Y1502WNTA

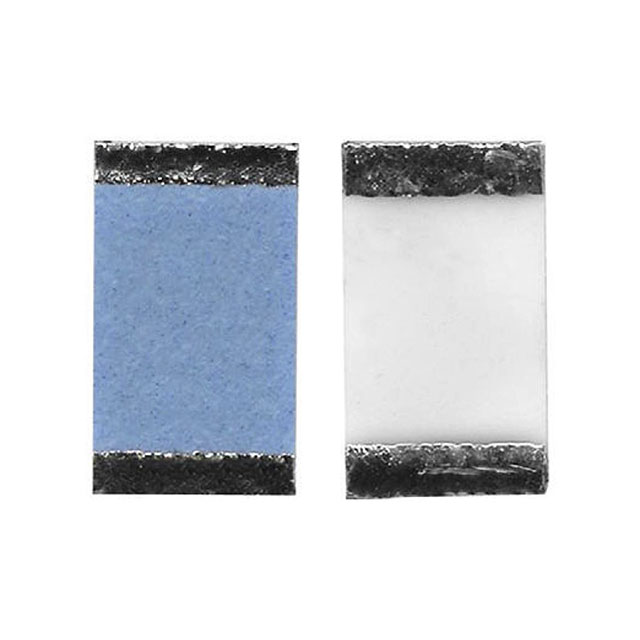

15 kOhms ±0.05% 0.32W Chip Resistor 0603 (1608 Metric) Anti-Sulfur Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | PEP0603Y1502WNTA |
|---|---|
| Composition | Thin Film |
| Features | Anti-Sulfur |
| Height - Seated (Max) | 0.025 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 |
| Power (Watts) | 0.32 W |
| Resistance | 15 kOhm |
| Size / Dimension Length | 0.06 in |
| Size / Dimension Width | 0.033 in |
| Temperature Coefficient | 10 ppm/°C |
| Tolerance | 0.05 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
