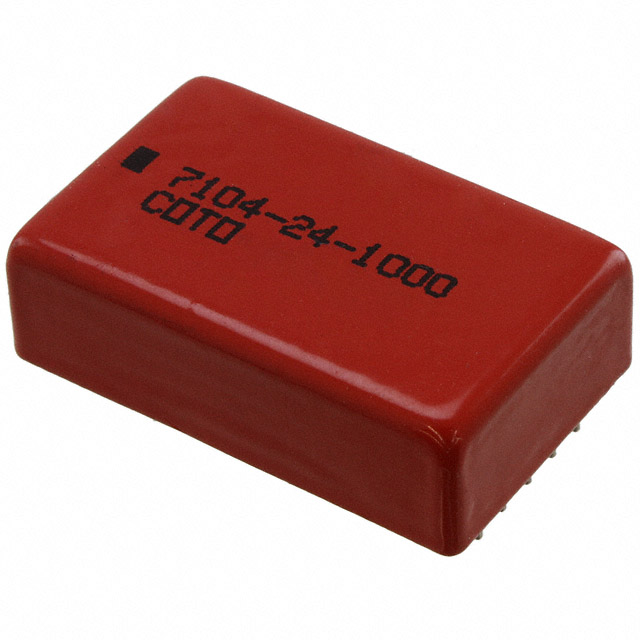

7104-24-1000
ObsoleteCOTO TECHNOLOGY
RELAY REED 4PST 500MA 24V
7104-24-1000
ObsoleteCOTO TECHNOLOGY
RELAY REED 4PST 500MA 24V
Description
General part information
7104-24-1000
RELAY REED 4PST 500MA 24V
Technical Specifications
Parameters and characteristics for this part
| Specification | 7104-24-1000 |
|---|---|
| Coil Current | 12 mA |
| Coil Resistance | 2000 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | 4 Form A, PST-NO |
| Contact Rating (Current) | 500 mA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2 VDC |
| Operate Time | 1 ms |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Pin Count | 4 |
| Release Time | 0.1 ms |
| Switching Voltage AC (Max) | 200 VAC |
| Switching Voltage DC (Max) | 200 VDC |
| Termination Style | PC Pin |
