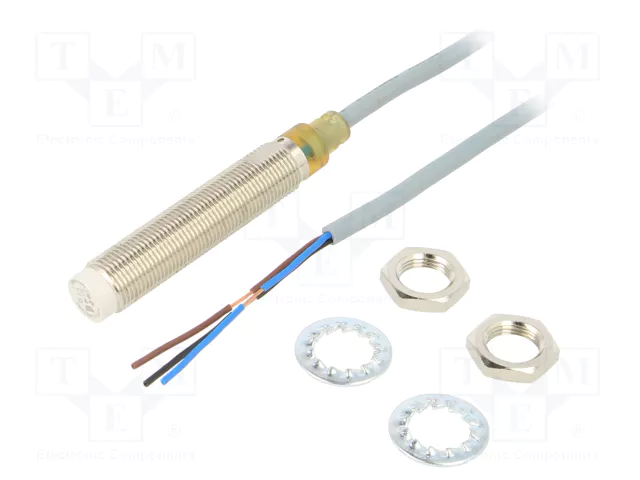

Primary product image

ICB12L50N10PC

Active
Carlo Gavazzi Inc.

PROXIMITY SENSORS INDUCTIVE PROXIMITY SENSOR, M12 NICKEL-PLATED BRASS, 2M CABLE, SN 10MM, NON-FLUSH MOUNT, LONG BODY, PNP NC OUTPUT, SUPPLY VOLTAGE 10-36VDC, MAX OUTPUT CURRENT 200 MA, MAX SWITCHING FREQUENCY 2 KHZ, OPERATING TEMPERATURE -25C - +70C, IP67

Find alt
Primary product image

ICB12L50N10PC

Active
Carlo Gavazzi Inc.

PROXIMITY SENSORS INDUCTIVE PROXIMITY SENSOR, M12 NICKEL-PLATED BRASS, 2M CABLE, SN 10MM, NON-FLUSH MOUNT, LONG BODY, PNP NC OUTPUT, SUPPLY VOLTAGE 10-36VDC, MAX OUTPUT CURRENT 200 MA, MAX SWITCHING FREQUENCY 2 KHZ, OPERATING TEMPERATURE -25C - +70C, IP67

Find alt

Description

General part information

ICB12 Series

PROXIMITY SENSORS INDUCTIVE PROXIMITY SENSOR, M12 NICKEL-PLATED BRASS, 2M CABLE, SN 10MM, NON-FLUSH MOUNT, LONG BODY, PNP NC OUTPUT, SUPPLY VOLTAGE 10-36VDC, MAX OUTPUT CURRENT 200 MA, MAX SWITCHING FREQUENCY 2 KHZ, OPERATING TEMPERATURE -25C - +70C, IP67

Technical Specifications

Parameters and characteristics for this part

SpecificationICB12L50N10PC
IndicatorLED
Ingress ProtectionIP67
Material - BodyNickel-Plated Brass
Operating Temperature (Max)70 °C
Operating Temperature (Min)-25 °C
Output Type3-Wire, PNP-NC
Package / CaseThreaded - M12, Cylinder
Response Frequency2 kHz
Sensing Distance0.394 "
Sensor TypeInductive
ShieldingUnshielded
Termination StyleCable Leads
Voltage - Supply (Maximum)36 VDC
Voltage - Supply (Minimum)10 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ICB-M12-EN.pdf
ICB12L50N10PC | Datasheet
