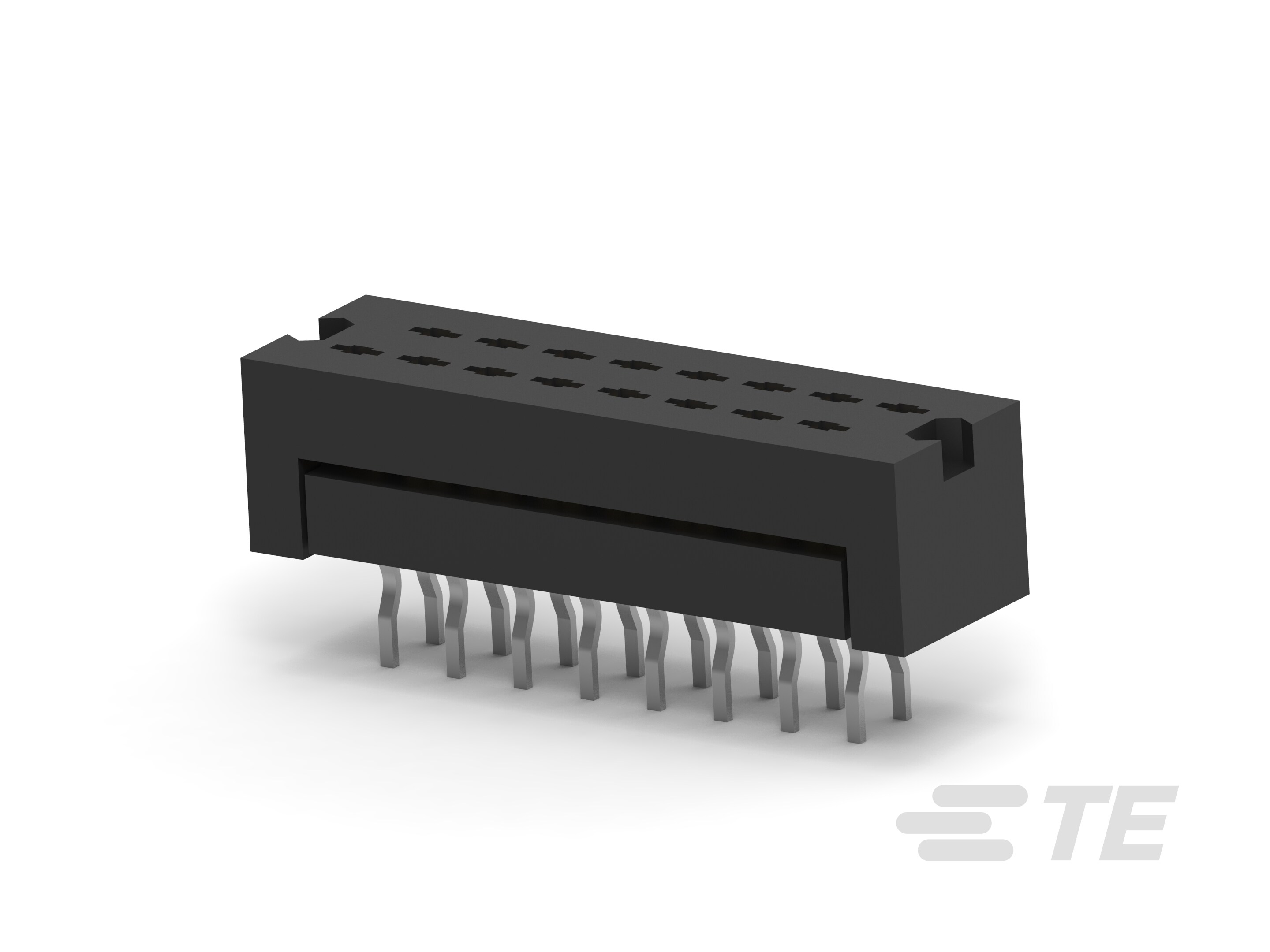

1-111382-6
ActiveTE Connectivity AMP Connectors
CONN DIP HDR IDC 16POS PCB
1-111382-6
ActiveTE Connectivity AMP Connectors
CONN DIP HDR IDC 16POS PCB
Description
General part information
1-111382-6
Wire-to-Board, 16 Position, 2.54 mm [.1 in] Centerline, Vertical, Through Hole - Solder, 2 Row, Plug, Low Profile, Ribbon Cable Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-111382-6 |
|---|---|
| Board-Side Pitch | 0.1 in |
| Cable Pitch | 0.05 in |
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Ribbon Cable, DIP Header |
| Contact Finish | Gold |
| Contact Finish Thickness | 5 µin |
| Features | Feed Through |
| Mounting Type | Through Hole, Press-Fit |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 0.1 in |
| Wire Gauge | Solid, 28 AWG, Stranded, 26-30 AWG |
