31168
Active3M Electronic Specialty

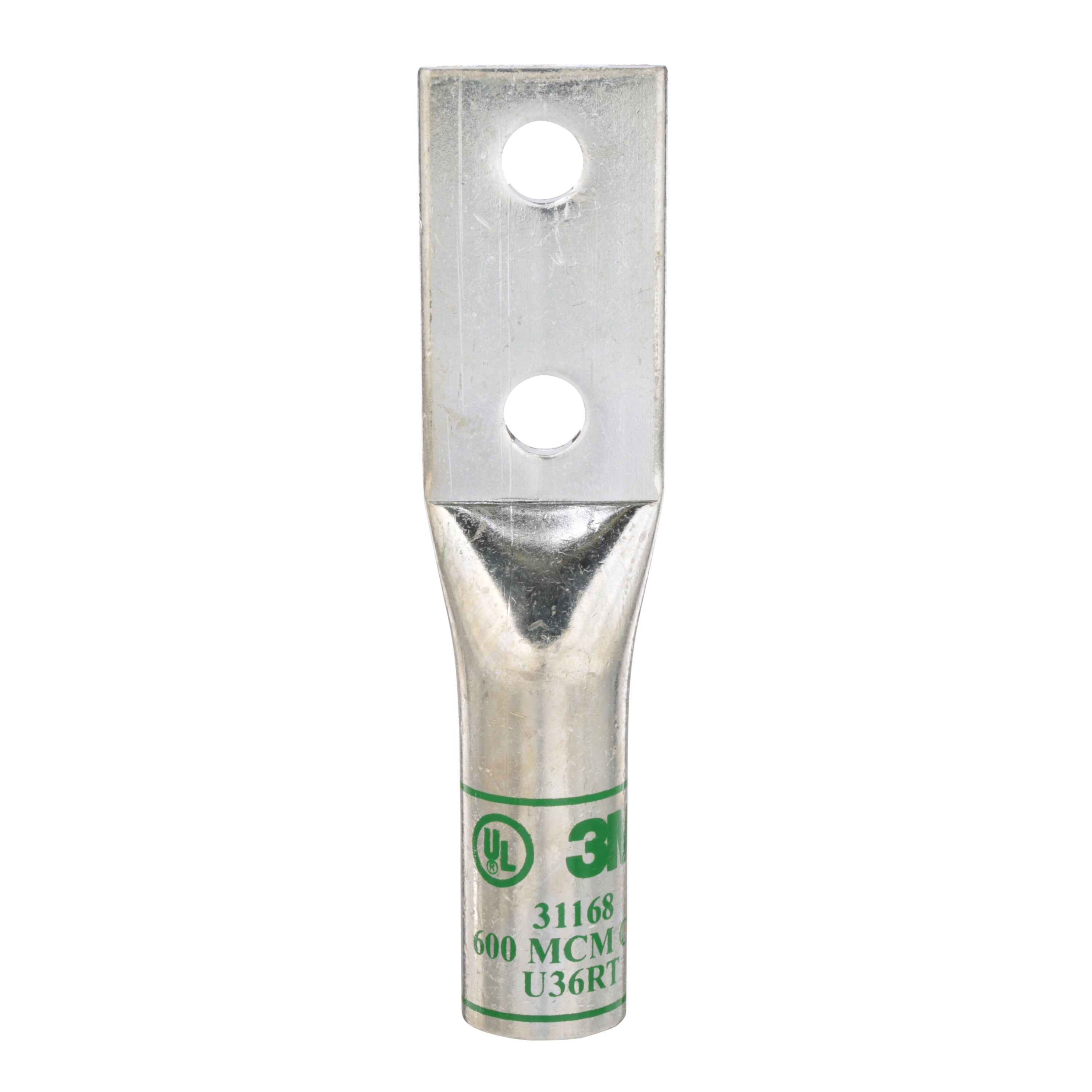

3M(TM) SCOTCHLOK(TM) COPPER TWO HOLE LONG BARREL LUG 31168, UP TO 35 KV, 600 KCMIL, GREEN
31168
Active3M Electronic Specialty
3M(TM) SCOTCHLOK(TM) COPPER TWO HOLE LONG BARREL LUG 31168, UP TO 35 KV, 600 KCMIL, GREEN
Description
General part information
31168
Terminal Connector Rectangular Lug, Grounding 600MCM (kcmil) 1/2 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | 31168 |
|---|---|
| Color | Green |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Diameter - Barrel ID | 0.923 in |
| Diameter - Barrel OD | 1.188 in |
| Insulation | Non-Insulated |
| Length - Overall | 6.717 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.5 Stud |
| Terminal Style | Two Stud Holes |
| Terminal Type | Lug, Grounding |
| Termination | Barrel, Crimb |
| Width - Outer Edges | 1.69 in |
| Wire Gauge (MCM) | 600 MCM |
