1-1986774-2
ActiveTE Connectivity AMP Connectors

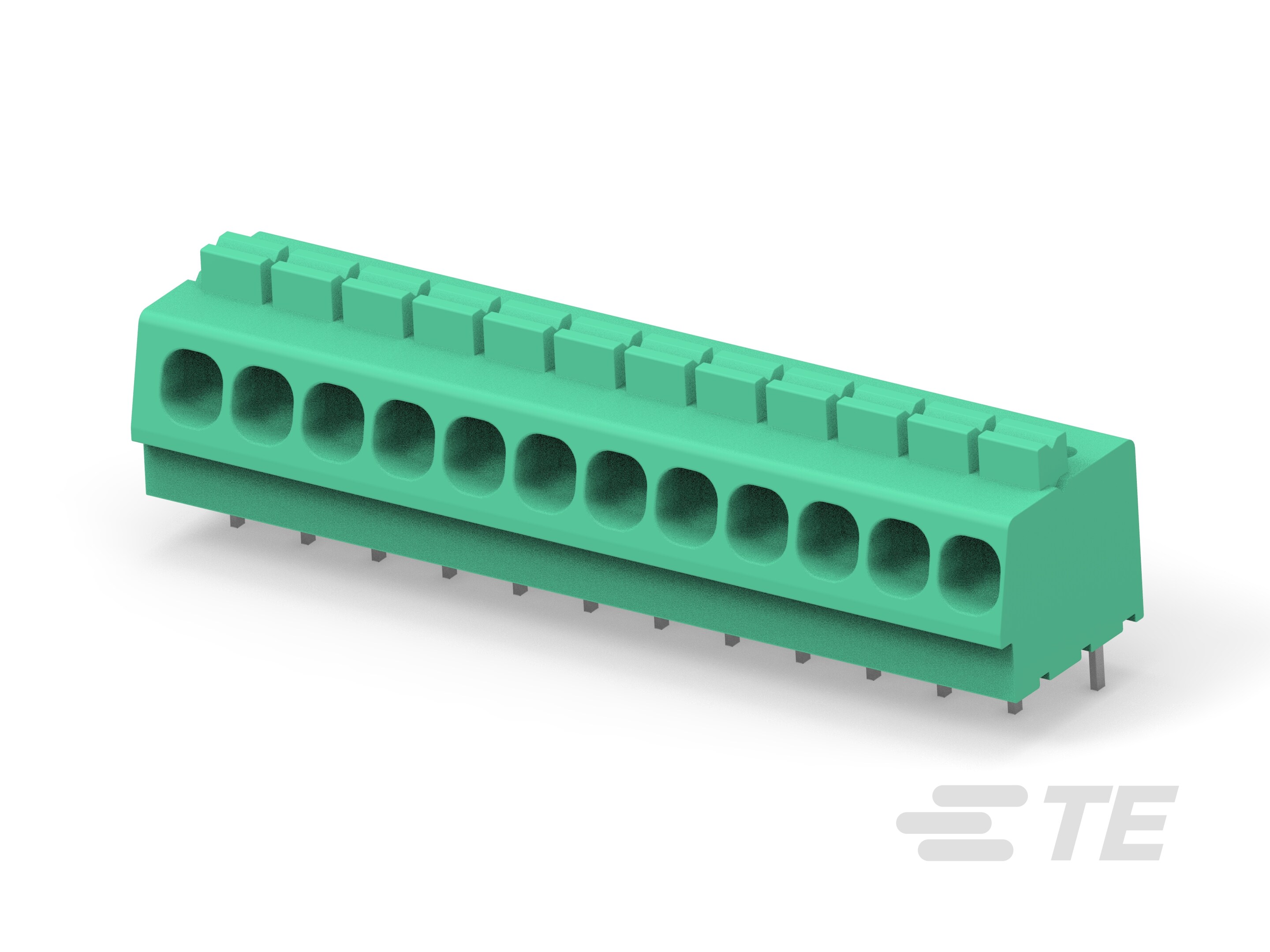

SCREWLESS, SW,12P,5.0 PCB, LOW AMP
1-1986774-2
ActiveTE Connectivity AMP Connectors
SCREWLESS, SW,12P,5.0 PCB, LOW AMP
Description
General part information
1-1986774-2
12 Position PCB Terminal Block, Header, Wire-to-Board, 5 mm [.197 in] Centerline, 1 Row, 90° Wire Entry Angle, 30 – 12 AWG, .05 – 3 mm² Wire, 300 VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1986774-2 |
|---|---|
| Color | Green |
| Current | 15 A |
| Features | Push Button Actuated |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.197 in |
| Positions Per Level | 12 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Leg Spring, Screwless, Push-In Spring |
