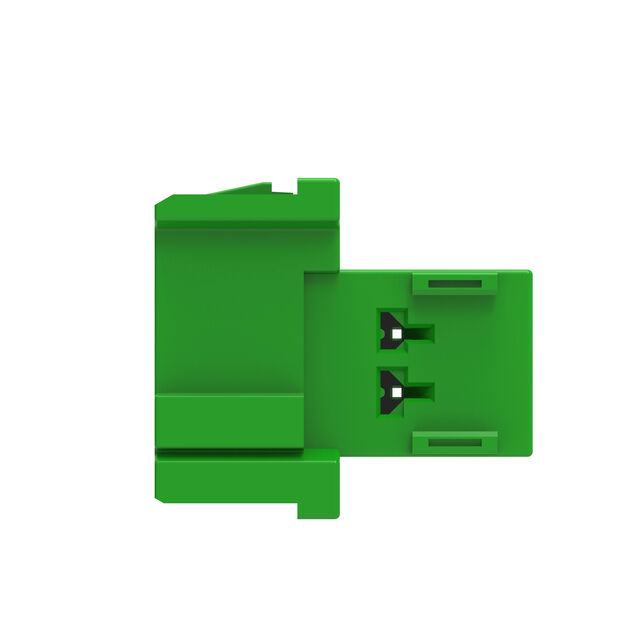

Specification	5-965641-1

Color	Green
Connector Type	Housing for Male Insert
Contact Termination	Crimp
Contact Type	Tab
Fastening Type	Latch Lock
Insulation Material	Nylon, Glass Filled, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Number of Rows	2
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Pitch	0.197 in
Row Spacing	0.217 in

Timer Connector System Series

...

Part	Pitch	Connector Type	Number of Rows	Contact Termination	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Color	Fastening Type	Insulation Material	Number of Positions	Mounting Type	For Use With/Related Products	Accessory Type	Note	Row Spacing	Features	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Type	Contact Finish	Pin or Socket
TE Connectivity AMP Connectors 827551-1	0.197 in	Receptacle	1	Crimp	Male Pin	130 °C	-40 °C	White	Push-Pull	Glass Filled Nylon Polyamide (PA)	2	Free Hanging (In-Line)
TE Connectivity AMP Connectors 826777-1											25		Junior Power Timer Series	Gasket
TE Connectivity AMP Connectors 965664-1
TE Connectivity AMP Connectors 1-967630-6	0.197 in	Plug	3	Crimp	Tab	120 °C	-40 °C	Blue		Glass Filled Nylon 6/6 Polyamide (PA66)	21	Free Hanging (In-Line)			Contacts Not Included	0.217 in
TE Connectivity AMP Connectors 969191-1	5.08 mm	Plug	2	Crimp	Tab	130 °C	-40 °C	Natural			8	Free Hanging (In-Line)			Contacts Not Included	0.2 in
TE Connectivity AMP Connectors 1393450-3		Receptacle	4	Crimp	Female Socket	130 °C	-40 °C	Black		Glass Filled Polybutylene Terephthalate (PBT)	52	Free Hanging (In-Line)					Sealed
TE Connectivity AMP Connectors 1379324-2	0.138 in	Receptacle	2	Crimp	Female Socket	70 °C	-40 °C	Gray	Lever Lock	Glass Filled Polybutylene Terephthalate (PBT)	52	Free Hanging (In-Line)				0.217 in
TE Connectivity AMP Connectors 170439-1				Crimp														19.5 AWG	22 AWG	Power	Tin	Socket
TE Connectivity AMP Connectors 963225-1											42		Junior Power Timer Series	Plug Sealing
TE Connectivity AMP Connectors 969191-4	5.08 mm	Plug	2	Crimp	Tab	130 °C	-40 °C	Brown		Nylon Polyamide (PA)	8	Free Hanging (In-Line)				0.2 in
