PF0464.302NL
ActivePulse Electronics
FIXED IND 3UH 4.25A 22 MOHM SMD
PF0464.302NL
ActivePulse Electronics
FIXED IND 3UH 4.25A 22 MOHM SMD
Description
General part information
PF0464.302NL

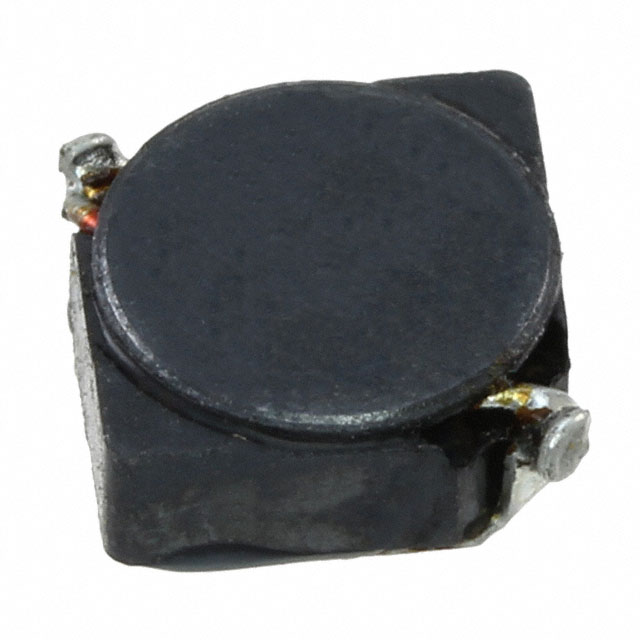

3 µH Shielded Inductor 4.25 A 22mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PF0464.302NL |
|---|---|
| Current - Saturation (Isat) | 3 A |
| Current Rating | 4.25 A |
| DC Resistance (DCR) (Max) | 22 mOhm |
| Frequency - Self Resonant | 40 MHz |
| Height - Seated (Max) | 0.118 in |
| Inductance | 3 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.283 in |
| Size / Dimension Width | 0.283 in |
| Tolerance | 20 % |
