GPS-21801

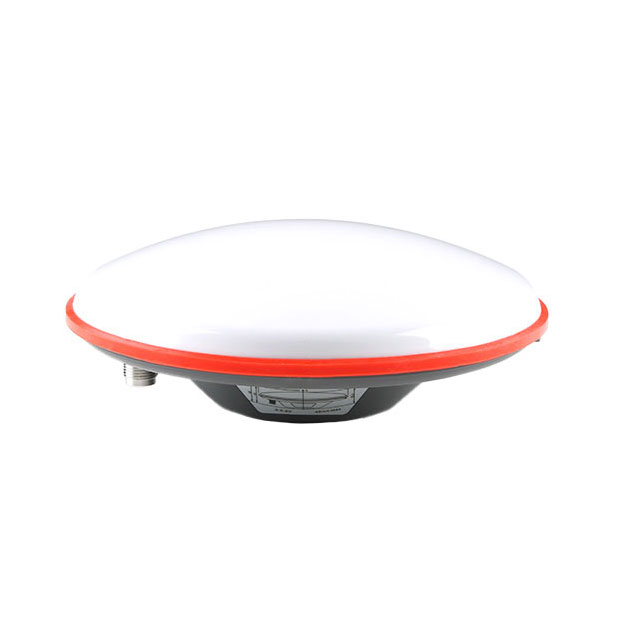

RF ANTENNA BeiDou, Galileo, GLONASS, GNSS, GPS Dome TNC Female Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | GPS-21801 |
|---|---|
| Antenna Type | Dome |
| Applications | GPS, Galileo, GLONASS, BEIDOU, GNSS |
| Features | LNA |
| Frequency (Band) | 1.58 GHz |
| Frequency (Center) | 1.214 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Band 1) Maximum | 1.278 GHz |
| Frequency Range (Band 1) Minimum | 1.15 GHz |
| Frequency Range (Band 2) Maximum | 1.61 GHz |
| Frequency Range (Band 2) Minimum | 1.55 GHz |
| Height (Max) | 2.299 in |
| Ingress Protection | IP67 |
| Mounting Type | Connector Mount |
| Number of Bands | 2 |
| RF Family/Standard | Navigation |
| Termination | TNC Female |
| VSWR | 1.5 |
