LCCA30476-FT4
ActivePasternack
SMA M TO N FBH USING LC141TBJ, 4
LCCA30476-FT4
ActivePasternack
SMA M TO N FBH USING LC141TBJ, 4
Description
General part information
LCCA30476-FT4

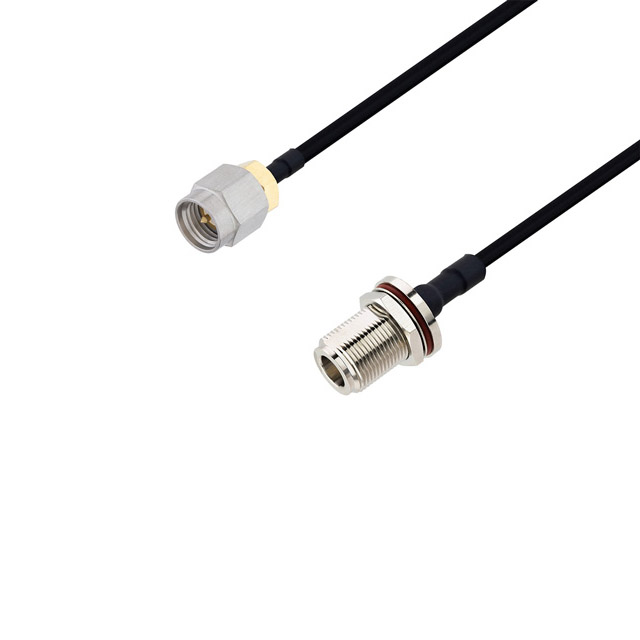

Cable Assembly Coaxial SMA to N-Type LC141TBJ 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30476-FT4 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LC141TBJ |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 10 GHz |
| Length | 48 in |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
