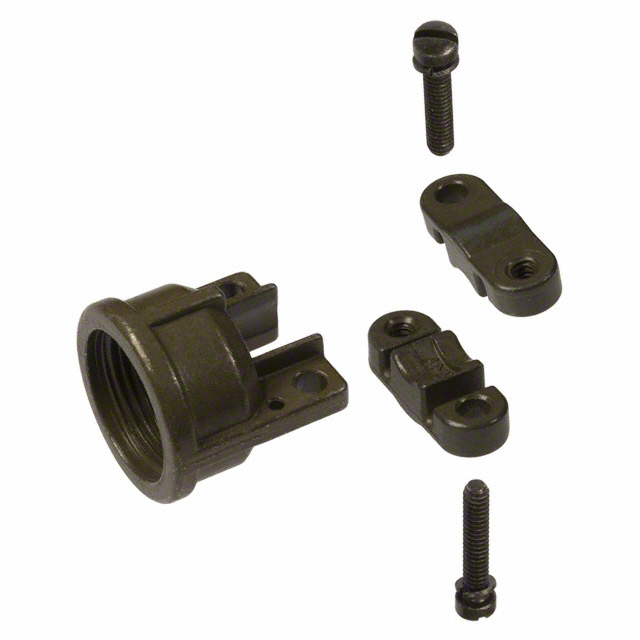

Specification	97-3057-1004(621)

Cable Exit Angle	180 °
Cable Opening	0.312 in
Color	Black
Features	Clamp Screws
For Use With/Related Products	Jacketed Cable or Wires Protected by Tubing
Includes	Screws, 3 pc Cable Clamp
Includes Total Count	5 pcs
Material	Zinc Die Cast
Plating	Zinc Alloy
Shell Size - Insert	10SL, 12S
Thread Pitch (TPI)	24 TPI
Thread Size (Nominal)	0.625 in
Type	Cable Clamp

97-3057 Series

Part	For Use With/Related Products	Includes	Includes Total Count	Shell Size - Insert	Features	Material	Plating	Color	Type	Cable Exit Angle	Cable Opening	Thread Pitch (TPI)	Thread Size (Nominal)	Shielding	Diameter - Outside	Thread Size (Min)	Thread Size (Max)	Shell Size - Insert
Amphenol Aerospace Operations 97-3057-1016(621)	Jacketed Cable or Wires Protected by Tubing	3 pc Cable Clamp Screws	5 pcs	24 28	Clamp Screws	Zinc Die Cast	Zinc Alloy	Black	Cable Clamp	180 °	0.938 in	18 TPI	1.4375 in
Amphenol Aerospace Operations 97-3057-1007	Jacketed Cable or Wires Protected by Tubing	3 pc Cable Clamp Screws	5 pcs	12SL 14 14S	Clamp Screws	Zinc Die Cast	Chromate	Olive	Cable Clamp	180 °	0.438 in	20 TPI	0.75 in
Amphenol Aerospace Operations 97-3057-12-6	Jacketed Cable or Wires Protected by Tubing	Cable Clamp Screws Washers	6 pcs	20 22	Clamp Screws Washers	Zinc Die Cast	Chromate	Olive	Cable Clamp	180 °	0.438 in	18 TPI	1.1875 in
Amphenol Aerospace Operations 97-3057-1004-1	Unjacketed Cable or Wires Protected by Tubing	Bushing Cable Clamp Screws	6 pcs	10SL 12S	Bushing Clamp Screws	Zinc Die Cast	Chromate	Olive	Cable Clamp	180 °	0.312 in	24 TPI	0.625 in
Amphenol Aerospace Operations 97-3057-8	Jacketed Cable or Wires Protected by Tubing	pc Cable Clamp Screws Washers	7 pcs	16 16S	Clamp Screws Washers	Zinc Die Cast	Chromate	Olive	Cable Clamp	180 °	0.562 in	20 TPI	0.875 in	Unshielded	1.062 in
Amphenol Aerospace Operations 97-3057-1007(621)	Jacketed Cable or Wires Protected by Tubing	3 pc Cable Clamp Screws	5 pcs	12SL 14 14S	Clamp Screws	Zinc Die Cast	Zinc Alloy	Black	Cable Clamp	180 °	0.438 in	20 TPI	0.75 in
Amphenol Aerospace Operations 97-3057-1010-1(621)	Unjacketed Cable or Wires Protected by Tubing	Bushing Cable Clamp Screws	6 pcs	18	Bushing Clamp Screws	Zinc Die Cast	Zinc Alloy	Black	Cable Clamp	180 °	0.625 in					1 mm	20 mm	18
Amphenol Aerospace Operations 97-3057-1007-1	Unjacketed Cable or Wires Protected by Tubing	Bushing Cable Clamp Screws	6 pcs	12SL 14 14S	Bushing Clamp Screws	Zinc Die Cast	Chromate	Olive	Cable Clamp	180 °	0.438 in	20 TPI	0.75 in
Amphenol Aerospace Operations 97-3057-1010(639)	Jacketed Cable or Wires Protected by Tubing	3 pc Cable Clamp Screws	5 pcs	18	Clamp Screws	Zinc Die Cast	Cadmium	Clear	Cable Clamp	180 °	0.625 in					1 mm	20 mm	18
Amphenol Aerospace Operations 97-3057-10	Jacketed Cable or Wires Protected by Tubing	pc Cable Clamp Screws Washers	7 pcs	18	Clamp Screws Washers	Zinc Die Cast	Chromate	Olive	Cable Clamp	180 °	0.625 in			Unshielded	1.187 in	1 mm	20 mm	18
