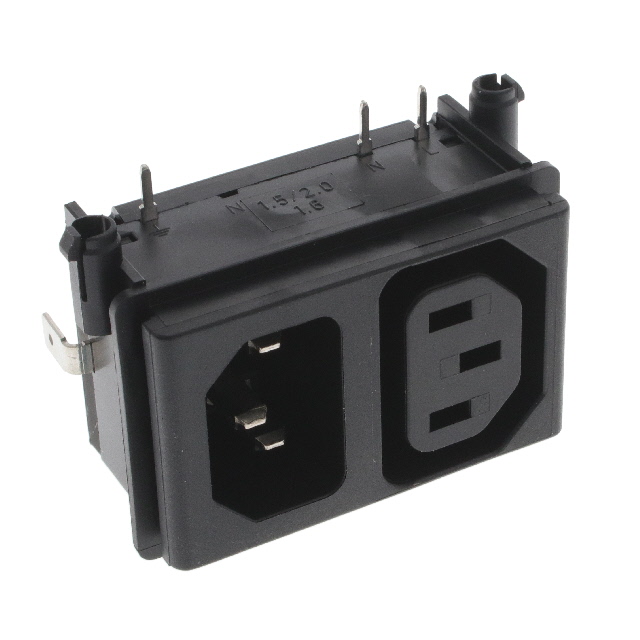

KP01.1012.01

Active

SCHURTER Inc.

PWR ENT IN/OUT IEC320-2-2F PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT IN/OUT IEC320-2-2F PNL

Technical Specifications

Parameters and characteristics for this part

Specification	KP01.1012.01

Accomodates a Fuse	False
Approval Agency	VDE, CCC, cURus
Connector Style	IEC 320-2-2/F, IEC 320-C14
Connector Type	Receptacle, Female Sockets, Receptacle, Male Blades
Current Rating - Appliance Inlet	10 A
Features	Terminating Cover
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount, Snap-In
Number of Positions	2
Number of Positions	3
Panel Cutout Dimensions	Variable Size
Panel Thickness	2 mm
Panel Thickness	0.079 in
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT IN/OUT IEC320-2-2F PNL

Part	Mounting Type	Panel Cutout Dimensions	Connector Style	Approval Agency	Features	Voltage Rating - Appliance Inlet	Termination	Current Rating - Appliance Inlet	Accomodates a Fuse	Filter Type	Material Flammability Rating	Number of Positions	Number of Positions	Connector Type	Ingress Protection	Panel Thickness	Panel Thickness
SCHURTER Inc. KP01.1012.01	Panel Mount, Snap-In, Through Hole, Right Angle	Variable Size	IEC 320-2-2/F, IEC 320-C14	CCC, cURus, VDE	Terminating Cover	250 VAC	Solder	10 A		Unfiltered - Commercial	UL94 V-0	2	3	Receptacle, Female Sockets, Receptacle, Male Blades	IP40	2 mm	0.079 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Female Sockets; Receptacle, Male Blades IEC 320-2-2/F; IEC 320-C14 Panel Mount, Snap-In; Through Hole, Right Angle
