NSYTBP191610HT
ActiveSCHNEIDER ELECTRIC
BOX PLAS GRY /CL 7.56"L X 6.46"W
NSYTBP191610HT
ActiveSCHNEIDER ELECTRIC
BOX PLAS GRY /CL 7.56"L X 6.46"W
Description
General part information
NSYTBP191610HT

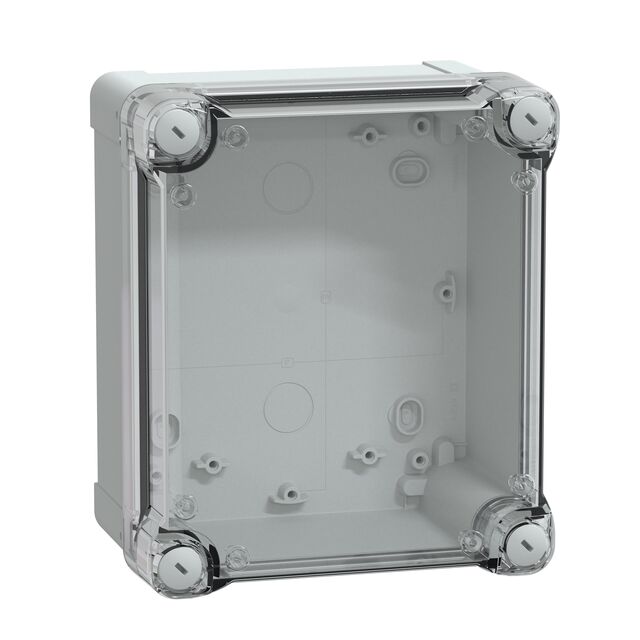

Box Plastic, Polycarbonate Light Gray, Clear Cover/Door Cover Included 7.559" L x 6.457" W (192.00mm x 164.00mm) X 4.134" (105.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | NSYTBP191610HT |
|---|---|
| Area (L x W) | 48.8 in² |
| Color | Light Gray, Clear Cover/Door |
| Container Type | Box |
| Design | Cover Included |
| Height | 4.134 in |
| Material | Polycarbonate (PC), Plastic, Polycarbonate |
| Ratings | IP66 |
| Size / Dimension Length | 7.559 in |
| Size / Dimension Width | 6.457 in |
| Thickness | 0.335 in |
