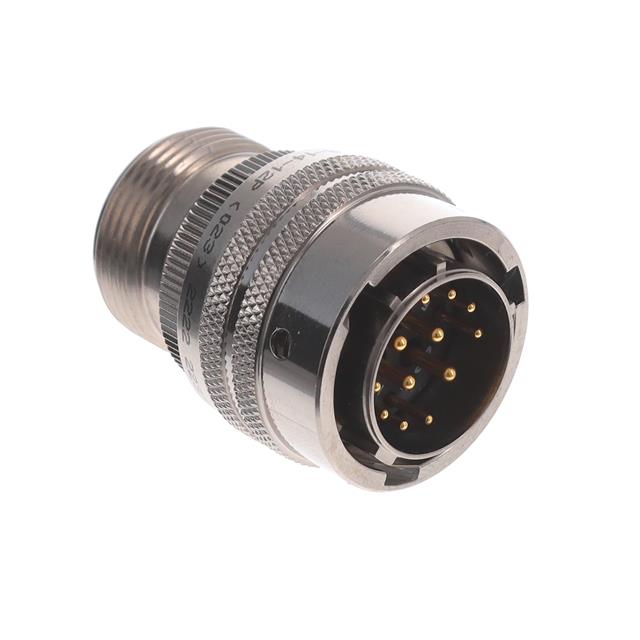

Specification	PT06A14-12P-023

Applications	Industrial, Instrumentation, Military, Mass Transit, Aerospace
Backshell Material	Aluminum
Color	Silver
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Plating	Electroless Nickel
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert Length	14 mm
Shell Size - Insert Width	12 mm
Shielding	Unshielded
Termination	Solder Cup

PT06A Series

...

Part	Shell Material	Orientation	Mounting Type	Features	Number of Positions	Connector Type	Contact Finish - Mating	Primary Material	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Termination	Qualification	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Shielding	Color	Shell Finish	Backshell Material, Plating	Insert Material	Contact Material	Applications	Backshell Material	Plating	Housing Color	Shell Size - Insert Length	Shell Size - Insert Width	Contact Shape	Note	Contact Type	Contact Size	Type	Voltage Rating
Amphenol Aerospace Operations PT06A-14-18SW(SR)	Aluminum	W	Free Hanging (In-Line)	Strain Relief	18	Female Sockets Plug	Gold	Metal	14 S	18	Solder Cup	MIL-DTL-26482 Series I	Bayonet Lock	125 °C	-55 °C	Unshielded	Olive Drab	Cadmium Olive Drab Chromate	Aluminum Olive Drab Cadmium	Neoprene	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military
Amphenol Aerospace Operations PT06A14-18P-023	Aluminum	N (Normal)	Free Hanging (In-Line)	Backshell Coupling Nut	18	Male Pins Plug	Gold	Metal	14 S	18	Solder Cup	MIL-DTL-26482 Series I	Bayonet Lock	125 °C	-55 °C	Unshielded	Silver	Electroless Nickel		Neoprene	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum	Electroless Nickel
Amphenol Aerospace Operations PT06A10-6P-SR-LC	Aluminum	N (Normal)	Free Hanging (In-Line)	Backshell Coupling Nut	6	Plug Housing						MIL-DTL-26482 Series I	Bayonet Lock	125 °C	-55 °C	Unshielded		Cadmium Chromate		Neoprene					Olive Drab	10 mm	6 mm	Circular	Contacts Not Included	Crimp	20	For Male Pins
Amphenol Aerospace Operations PT06A-14-19S(SR)	Aluminum	N (Normal)	Free Hanging (In-Line)	Strain Relief	19	Female Sockets Plug	Gold	Metal	14 S	19	Solder Cup	MIL-DTL-26482 Series I	Bayonet Lock	125 °C	-55 °C	Unshielded	Olive Drab	Cadmium Olive Drab Chromate	Aluminum Olive Drab Cadmium	Neoprene	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military
Amphenol Aerospace Operations PT06A-14-12S(SR)	Aluminum	N (Normal)	Free Hanging (In-Line)	Strain Relief	12	Female Sockets Plug	Gold	Metal			Solder Cup	MIL-DTL-26482 Series I	Bayonet Lock	125 °C	-55 °C	Unshielded	Olive Drab	Cadmium Olive Drab Chromate	Aluminum Olive Drab Cadmium	Neoprene	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military				14 mm	12 mm
Amphenol Aerospace Operations PT06A12-4P-SR	Aluminum	N (Normal)	Free Hanging (In-Line)	Strain Relief	4	Male Pins Plug	Gold	Metal			Solder Cup	MIL-DTL-26482 Series I	Bayonet Lock	125 °C	-55 °C	Unshielded	Olive Drab	Cadmium Olive Drab Chromate	Aluminum Olive Drab Cadmium	Neoprene	Copper Alloy	Aerospace Communication Systems Industrial Instrumentation Mass Transit				12 mm	4 mm
Amphenol Aerospace Operations PT06A-24-61S(025)	Aluminum	N (Normal)	Free Hanging (In-Line)	Backshell Coupling Nut	61	Female Sockets Plug	Gold	Metal	24	61	Solder Cup	MIL-DTL-26482 Series I	Bayonet Lock	125 °C	-55 °C	Unshielded	Black	Black Zinc Cobalt		Neoprene	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum	Black Zinc Cobalt
Amphenol Aerospace Operations PT06A16-23P-470	Aluminum	N (Normal)	Free Hanging (In-Line)	Backshell Coupling Nut Strain Relief	23	Male Pins Plug	Gold	Metal	16 S	23	Solder Cup	MIL-DTL-26482 Series I	Bayonet Lock	125 °C	-55 °C	Unshielded	Black	Black Zinc Cobalt		Neoprene	Copper Alloy	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Aluminum	Black Zinc Cobalt									600 V
Amphenol Aerospace Operations PT06A20-39SZ	Aluminum	Z	Free Hanging (In-Line)		39	Female Sockets Plug	Gold	Metal	20	39	Solder Cup	MIL-DTL-26482 Series I	Bayonet Lock	125 °C	-55 °C	Unshielded	Olive Drab	Cadmium Olive Drab Chromate	Aluminum Olive Drab Cadmium	Neoprene	Copper Alloy	Aerospace Communication Systems Industrial Instrumentation Mass Transit
Amphenol Aerospace Operations PT06A-14-15P	Aluminum	N (Normal)	Free Hanging (In-Line)	Backshell Coupling Nut	15	Male Pins Plug	Gold	Metal	14 S	15	Solder Cup	MIL-DTL-26482 Series I	Bayonet Lock	125 °C	-55 °C	Unshielded	Olive Drab	Cadmium Olive Drab Chromate	Aluminum Olive Drab Cadmium	Neoprene	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military
