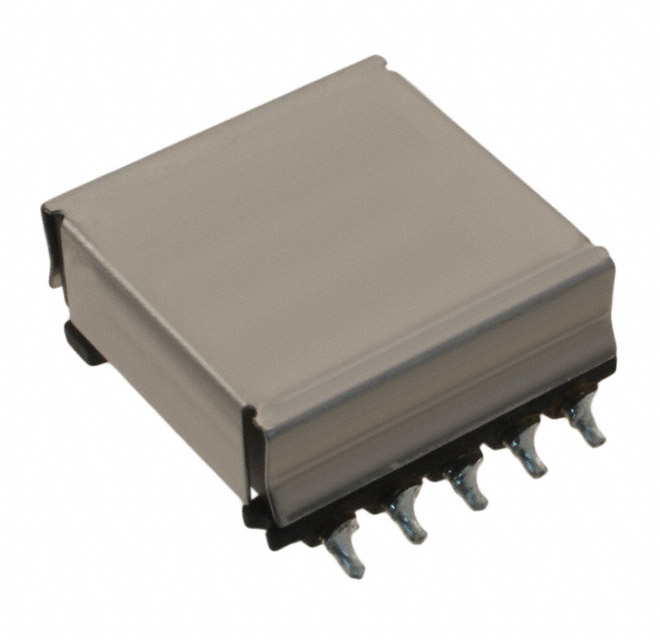

B82802A0030A220
ActiveEPCOS - TDK Electronics
XFMR FLYBACK DC/DC CONV 40UH SMD
B82802A0030A220
ActiveEPCOS - TDK Electronics
XFMR FLYBACK DC/DC CONV 40UH SMD
Description
General part information
B82802A0030A220
Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 100kHz Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | B82802A0030A220 |
|---|---|
| Applications | Flyback Converters |
| Footprint Length | 0.866 in |
| Footprint Width | 1.035 in |
| Frequency | 100 kHz |
| Height - Seated (Max) | 0.421 in |
| Inductance | 40 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.866 in |
| Size / Dimension Width | 0.878 in |
| Type | For DC/DC Converters |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary (Max) | 60 V |
| Voltage - Primary (Min) | 36 V |
